  • TUNGALOY EVX10020RSU Milling Cutter 90.0°, Drill Mill 0.787 Cutter Diameter Cylindrical Shank0.7500 3.281 OAL 2 Flute

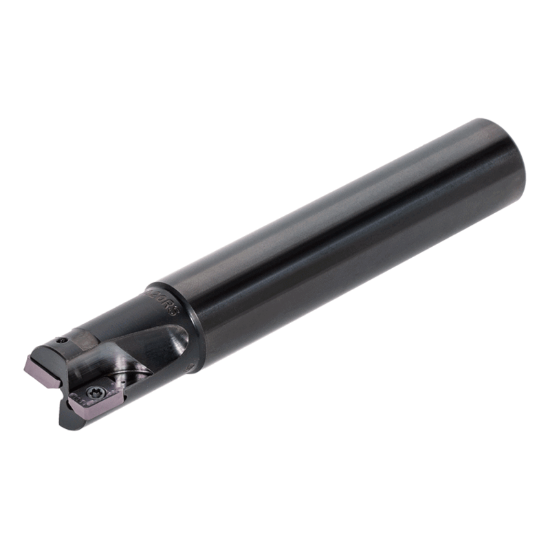

Picture of TUNGALOY EVX10020RSU Milling Cutter 90.0°, Drill Mill 0.787 Cutter Diameter Cylindrical Shank0.7500 3.281 OAL 2 Flute

TUNGALOY EVX10020RSU Milling Cutter 90.0°, Drill Mill 0.787 Cutter Diameter Cylindrical Shank0.7500 3.281 OAL 2 Flute

ANSI: EVX10020RSU

ISO: EVX10020RSU

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6829626
Delivery date: 3-5 days
$339.25

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Application Drill Milling, Slot Milling, Side Milling, Plunge Milling
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Flutes/Inserts 2
Cut Dia Max 0.7870 19.99MM
Tool Material Steel
Overall Len 3.2810 83.34MM
Machine Side Connection Size 0.7500 19.05MM
Depth Of Cut Max 0.4530
Cut Dia Min 0.7870 19.99MM
Machine Side Connection Type Cylindrical
Cutter Dia 0.7870 19.99MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cutting & Machining Properties
Insert Style XX
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
Hand R/L Right
Fasteners & Connectors
Insert Screw 6815313
