  • TUNGALOY EVX08062RLHU Milling Cutter 90.0°, Drill Mill 0.625 Cutter Diameter Cylindrical Shank0.6250 7.000 OAL 2 Flute

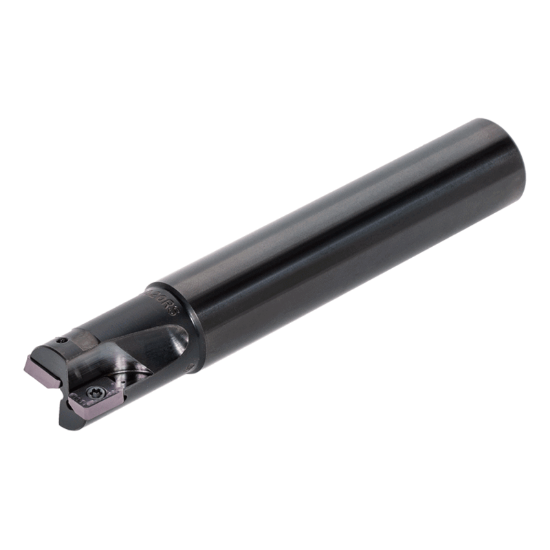

Picture of TUNGALOY EVX08062RLHU Milling Cutter 90.0°, Drill Mill 0.625 Cutter Diameter Cylindrical Shank0.6250 7.000 OAL 2 Flute

TUNGALOY EVX08062RLHU Milling Cutter 90.0°, Drill Mill 0.625 Cutter Diameter Cylindrical Shank0.6250 7.000 OAL 2 Flute

ANSI: EVX08062RLHU

ISO: EVX08062RLHU

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6843464
Delivery date: 3-5 days
$365.70

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Slot Milling, Drill Milling, Plunge Milling, Side Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cut Dia Max 0.6250 15.88MM - 5/8
Tool Material Steel
Machine Side Connection Size 0.6250 15.88MM
Cut Dia Min 0.6250 15.88MM - 5/8
Machine Side Connection Type Cylindrical
Overall Len 7.0000 177.80MM
Flutes/Inserts 2
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Depth Of Cut Max 1.8100
Cutter Dia 0.6250 15.88MM - 5/8
Cutting & Machining Properties
Insert Style XX
Hand R/L Right
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
Fasteners & Connectors
Insert Screw 6815312
