  • TUNGALOY EVH09R016M16.0-02 Milling Cutter 90.0°, Drill Mill 0.630 Cutter Diameter Cylindrical Shank0.6299 4.881 OAL 2 Flute

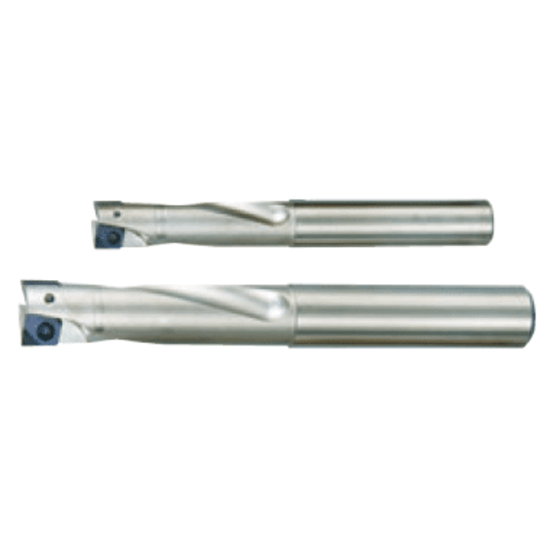

Picture of TUNGALOY EVH09R016M16.0-02 Milling Cutter 90.0°, Drill Mill 0.630 Cutter Diameter Cylindrical Shank0.6299 4.881 OAL 2 Flute

TUNGALOY EVH09R016M16.0-02 Milling Cutter 90.0°, Drill Mill 0.630 Cutter Diameter Cylindrical Shank0.6299 4.881 OAL 2 Flute

ANSI: EVH09R016M16.0-02

ISO: EVH09R016M16.0-02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6852778
Delivery date: 3-5 days
$308.90

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Plunge Milling, Shoulder Milling, Ramp Milling, Slot Milling, Drilling, Pocket Milling, Side Milling
Package Size 1
Made In USA No
Shipping State Illinois
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Dimensional Specifications
Insert Size Ic 9
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Cut Dia Min 0.6300 16.00MM
Cut Dia Max 0.6300 16.00MM
Depth Of Cut Max 0.3940
Machine Side Connection Type Cylindrical
Tool Material Steel
Overall Len 4.8819 124.00MM
Cutter Dia 0.6300 16.00MM
Flutes/Inserts 2
Cutting & Machining Properties
Insert Style XV
Hand R/L Right
Insert Shape/Cutter Pocket Shape Parallelogram
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 6819732
