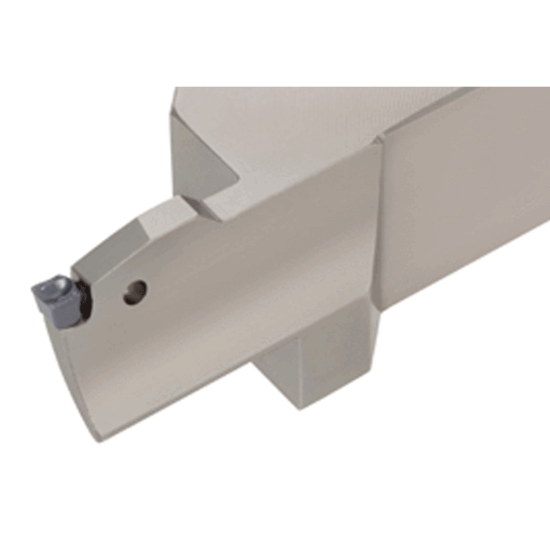

Picture of TUNGALOY ETFR2525-5T25-045055 Press In Face Grooving Stick Tool Steel Square 0.984

TUNGALOY ETFR2525-5T25-045055 Press In Face Grooving Stick Tool Steel Square 0.984

ANSI: ETFR2525-5T25-045055

ISO: ETFR2525-5T25-045055

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6991233
Delivery date: 3-5 days
$267.30

Details

Toolholders for face grooving & turning

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Insert Type Positive
Package Size 1
Insert/Tool Tool
Insert Application General Purpose
Application Face Grooving
Shipping State Illinois
Dimensional Specifications
Max Dia Cut Off 2.1654
Shank/Pilot Dia 0.9843 25.00MM
Min Bore 1.7717
Overall Len 5.9055 150.00MM
Insert Size Ic 5
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.9843 25.00MM
Cutting & Machining Properties
Insert Style ET
Insert Shape/Cutter Pocket Shape Other
Inter/Extern External
Hand R/L Right
