  • TUNGALOY ESE3040R Milling Cutter 90.0° 1.575 Cutter Diameter Cylindrical Shank1.2598 4.921 OAL 2 Flute

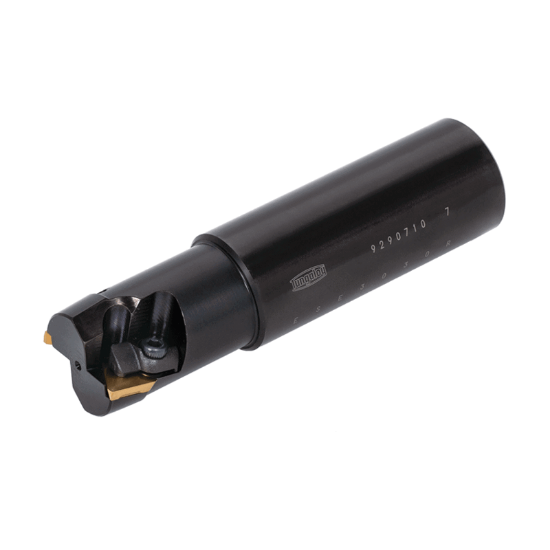

Picture of TUNGALOY ESE3040R Milling Cutter 90.0° 1.575 Cutter Diameter Cylindrical Shank1.2598 4.921 OAL 2 Flute

TUNGALOY ESE3040R Milling Cutter 90.0° 1.575 Cutter Diameter Cylindrical Shank1.2598 4.921 OAL 2 Flute

ANSI: ESE3040R

ISO: ESE3040R

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6804388
Delivery date: 3-5 days
$319.70

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Side Milling
Insert/Tool Tool
Insert Application Semi Finishing, Roughing
Insert Type Positive
Made In USA No
Shipping State Illinois
Dimensional Specifications
Depth Of Cut Max 0.3150
Shank/Pilot Dia 1.2598 32.00MM
Flutes/Inserts 2
Overall Len 4.9213 125.00MM
Cut Dia Min 1.5750 40.01MM
Tool Material Steel
Insert Size Ic 32
Machine Side Connection Type Cylindrical
Cutter Dia 1.5750 40.01MM
Machine Side Connection Size 1.2598 32.00MM
Cutting & Machining Properties
Coolant Thru No
Insert Style TE
Hand R/L Right
Insert Shape/Cutter Pocket Shape Triangle
Fasteners & Connectors
Clamp/Wedge 6802520
Clamp Screw 6651107
