  • TUNGALOY ESE3030R Milling Cutter 90.0° 1.181 Cutter Diameter Cylindrical Shank1.2598 4.921 OAL 2 Flute

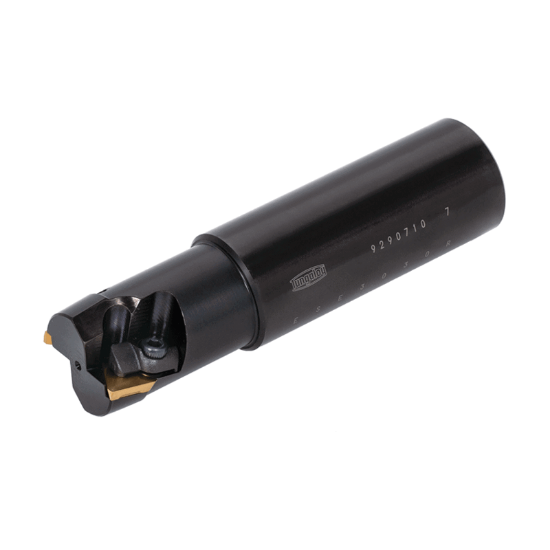

Picture of TUNGALOY ESE3030R Milling Cutter 90.0° 1.181 Cutter Diameter Cylindrical Shank1.2598 4.921 OAL 2 Flute

TUNGALOY ESE3030R Milling Cutter 90.0° 1.181 Cutter Diameter Cylindrical Shank1.2598 4.921 OAL 2 Flute

ANSI: ESE3030R

ISO: ESE3030R

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6804383
Delivery date: 3-5 days
$293.40

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Type Positive
Package Size 1
Insert Application Roughing, Semi Finishing
Application Side Milling
Made In USA No
Shipping State Illinois
Dimensional Specifications
Tool Material Steel
Insert Size Ic 32
Cutter Dia 1.1810 30.00MM
Shank/Pilot Dia 1.2598 32.00MM
Machine Side Connection Type Cylindrical
Depth Of Cut Max 0.3150
Cut Dia Min 1.1810 30.00MM
Flutes/Inserts 2
Overall Len 4.9213 125.00MM
Machine Side Connection Size 1.2598 32.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Coolant Thru No
Hand R/L Right
Insert Style TE
Fasteners & Connectors
Clamp Screw 6651107
Clamp/Wedge 6802520
