  • TUNGALOY ERP16R040M32.0-02 Milling Cutter Button Cutter 1.575 Cutter Diameter Cylindrical Shank1.2598 5.905 OAL 2 Flute

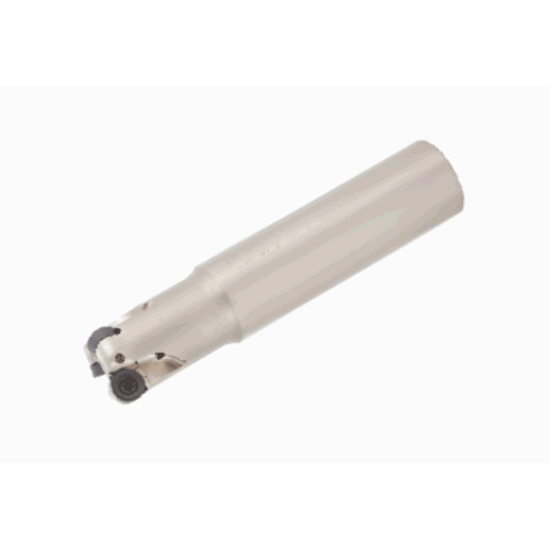

Picture of TUNGALOY ERP16R040M32.0-02 Milling Cutter Button Cutter 1.575 Cutter Diameter Cylindrical Shank1.2598 5.905 OAL 2 Flute

TUNGALOY ERP16R040M32.0-02 Milling Cutter Button Cutter 1.575 Cutter Diameter Cylindrical Shank1.2598 5.905 OAL 2 Flute

ANSI: ERP16R040M32.0-02

ISO: ERP16R040M32.0-02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6987866
Delivery date: 3-5 days
$595.85

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Insert Type Positive
Application Face Milling, Round Milling, Pocket Milling, Ramp Milling
Package Size 1
Insert/Tool Tool
Made In USA No
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 16
Machine Side Connection Type Cylindrical
Overall Len 5.9055 150.00MM
Shank/Pilot Dia 1.2598 32.00MM
Depth Of Cut Max 0.2360
Cut Dia Min 0.9450 24.00MM
Flutes/Inserts 2
Cutter Dia 1.5750 40.01MM
Tool Material Steel
Machine Side Connection Size 1.2598 32.00MM
Cut Dia Max 1.5750 40.01MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Coolant Thru Yes
Insert Style RP
Fasteners & Connectors
Insert Screw 6821842
