  • TUNGALOY ERD6050RA Milling Cutter Button Cutter 1.181 Cutter Diameter Cylindrical Shank1.2598 5.629 OAL 3 Flute

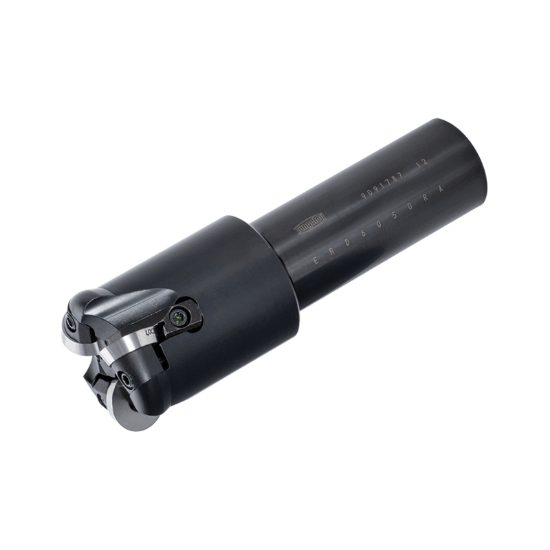

Picture of TUNGALOY ERD6050RA Milling Cutter Button Cutter 1.181 Cutter Diameter Cylindrical Shank1.2598 5.629 OAL 3 Flute

TUNGALOY ERD6050RA Milling Cutter Button Cutter 1.181 Cutter Diameter Cylindrical Shank1.2598 5.629 OAL 3 Flute

ANSI: ERD6050RA

ISO: ERD6050RA

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6804356
Delivery date: 3-5 days
$809.95

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Round Milling, Ramp Milling, Pocket Milling
Package Size 1
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Insert Type Positive
Dimensional Specifications
Cutter Dia 1.1810 30.00MM
Shank/Pilot Dia 1.2598 32.00MM
Cut Dia Min 1.1810 30.00MM
Machine Side Connection Size 1.2598 32.00MM
Insert Size Ic 20
Tool Material Steel
Flutes/Inserts 3
Depth Of Cut Max 0.3940
Machine Side Connection Type Cylindrical
Overall Len 5.6299 143.00MM
Cut Dia Max 1.9690 50.01MM
Cutting & Machining Properties
Coolant Thru No
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Insert Style RD
Fasteners & Connectors
Clamp Screw 6806398
Clamp/Wedge 6809868
