  • TUNGALOY ERD12150RSU Milling Cutter Button Cutter 1.500 Cutter Diameter Cylindrical Shank1.0000 4.780 OAL 3 Flute

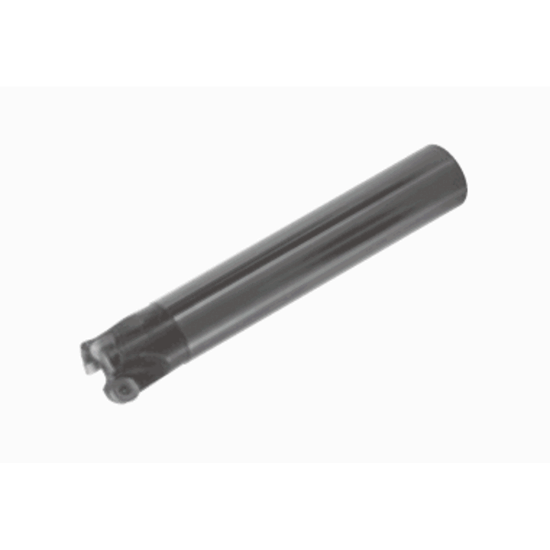

Picture of TUNGALOY ERD12150RSU Milling Cutter Button Cutter 1.500 Cutter Diameter Cylindrical Shank1.0000 4.780 OAL 3 Flute

TUNGALOY ERD12150RSU Milling Cutter Button Cutter 1.500 Cutter Diameter Cylindrical Shank1.0000 4.780 OAL 3 Flute

ANSI: ERD12150RSU

ISO: ERD12150RSU

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6811817
Delivery date: 3-5 days
$443.80

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Pocket Milling, Round Milling, Ramp Milling
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Cut Dia Min 1.5000 38.10MM - 1-1/2
Cutter Dia 1.5000 38.10MM - 1-1/2
Cut Dia Max 1.5000 38.10MM - 1-1/2
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Machine Side Connection Type Cylindrical
Depth Of Cut Max 0.2360
Tool Material Steel
Insert Size Ic 12
Flutes/Inserts 3
Overall Len 4.7800 121.41MM
Cutting & Machining Properties
Insert Style RD
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Coolant Thru No
Fasteners & Connectors
Insert Screw 6802569
