  • TUNGALOY ERD12040RS Milling Cutter Button Cutter 1.102 Cutter Diameter Cylindrical Shank1.2598 5.905 OAL 3 Flute

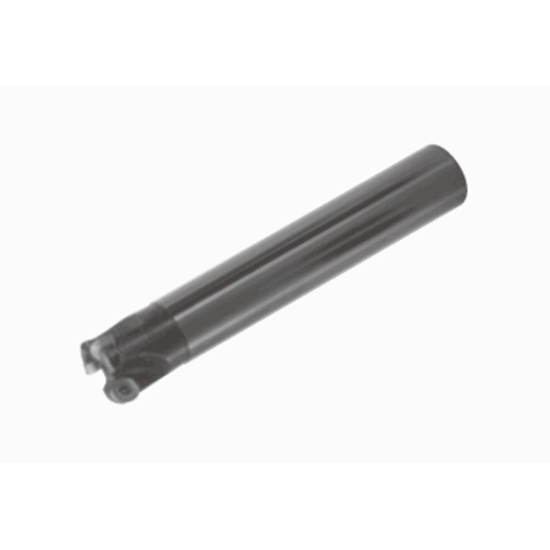

Picture of TUNGALOY ERD12040RS Milling Cutter Button Cutter 1.102 Cutter Diameter Cylindrical Shank1.2598 5.905 OAL 3 Flute

TUNGALOY ERD12040RS Milling Cutter Button Cutter 1.102 Cutter Diameter Cylindrical Shank1.2598 5.905 OAL 3 Flute

ANSI: ERD12040RS

ISO: ERD12040RS

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6811095
Delivery date: 3-5 days
$540.10
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Application Round Milling, Face Milling, Pocket Milling, Ramp Milling
Package Size 1
Insert Type Positive
Insert/Tool Tool
Shipping State Illinois
Made In USA No
Dimensional Specifications
Machine Side Connection Type Cylindrical
Overall Len 5.9055 150.00MM
Insert Size Ic 12
Cut Dia Min 1.1020 27.99MM
Shank/Pilot Dia 1.2598 32.00MM
Flutes/Inserts 3
Depth Of Cut Max 0.2360
Tool Material Steel
Cutter Dia 1.1020 27.99MM
Machine Side Connection Size 1.2598 32.00MM
Cut Dia Max 1.5750 40.01MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Coolant Thru No
Insert Style RD
Fasteners & Connectors
Insert Screw 6802569
