  • TUNGALOY ERC16R150U0150-02LX Milling Cutter Button Cutter 1.500 Cutter Diameter Cylindrical Shank1.5000 12.00 OAL 2 Flute

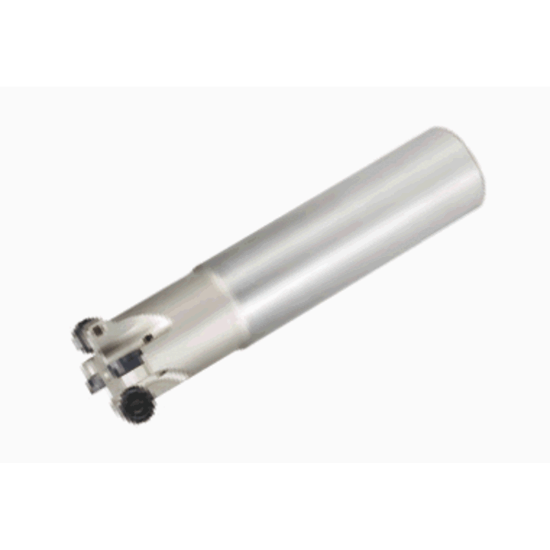

Picture of TUNGALOY ERC16R150U0150-02LX Milling Cutter Button Cutter 1.500 Cutter Diameter Cylindrical Shank1.5000 12.00 OAL 2 Flute

TUNGALOY ERC16R150U0150-02LX Milling Cutter Button Cutter 1.500 Cutter Diameter Cylindrical Shank1.5000 12.00 OAL 2 Flute

ANSI: ERC16R150U0150-02LX

ISO: ERC16R150U0150-02LX

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN3030071
Delivery date: 3-5 days
$672.40
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Round Milling, Pocket Milling, Ramp Milling
Package Size 1
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Insert Type Positive
Dimensional Specifications
Machine Side Connection Size 1.5000 38.10MM
Depth Of Cut Max 0.3150
Flutes/Inserts 2
Tool Material Steel
Insert Size Ic 16
Cutter Dia 1.5000 38.10MM - 1-1/2
Cut Dia Min 0.8700 22.10MM
Cut Dia Max 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Cylindrical
Overall Len 12.0000 304.80MM
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Cutting & Machining Properties
Insert Style RC
Hand R/L Right
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Round
Fasteners & Connectors
Insert Screw 7009629
