  • TUNGALOY ERC16R150U0125W02 Milling Cutter Button Cutter 1.500 Cutter Diameter Weldon 1.2500 5.000 OAL 2 Flute

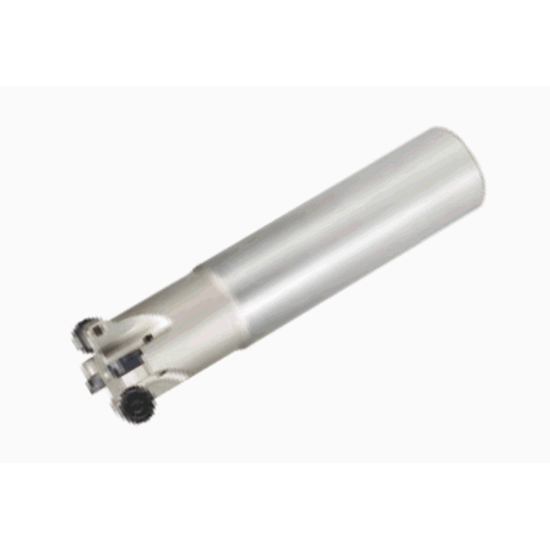

Picture of TUNGALOY ERC16R150U0125W02 Milling Cutter Button Cutter 1.500 Cutter Diameter Weldon 1.2500 5.000 OAL 2 Flute

TUNGALOY ERC16R150U0125W02 Milling Cutter Button Cutter 1.500 Cutter Diameter Weldon 1.2500 5.000 OAL 2 Flute

ANSI: ERC16R150U0125W02

ISO: ERC16R150U0125W02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN3030090
Delivery date: 3-5 days
$631.20

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Ramp Milling, Face Milling, Round Milling, Pocket Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Dimensional Specifications
Insert Size Ic 16
Cutter Dia 1.5000 38.10MM - 1-1/2
Cut Dia Min 0.8700 22.10MM
Machine Side Connection Type Weldon
Depth Of Cut Max 0.3150
Flutes/Inserts 2
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Cut Dia Max 1.5000 38.10MM - 1-1/2
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 5.0000 127.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Insert Style RC
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7009629
