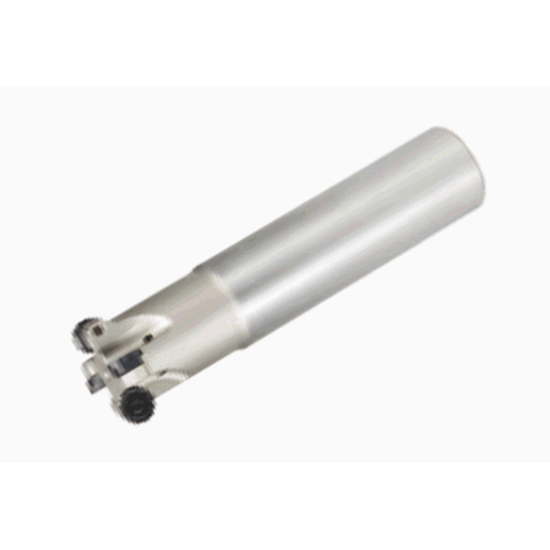

Picture of TUNGALOY ERC16R050M42.0-03LL Milling Cutter Button Cutter 1.967 Cutter Diameter Cylindrical Shank1.6535 11.81 OAL 3 Flute

TUNGALOY ERC16R050M42.0-03LL Milling Cutter Button Cutter 1.967 Cutter Diameter Cylindrical Shank1.6535 11.81 OAL 3 Flute

ANSI: ERC16R050M42.0-03LL

ISO: ERC16R050M42.0-03LL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN3028911
Delivery date: 3-5 days
$820.10
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Pocket Milling, Round Milling, Face Milling
Made In USA No
Shipping State Illinois
Insert Application Roughing, Semi Finishing
Package Size 1
Insert/Tool Tool
Insert Type Positive
Dimensional Specifications
Cutter Dia 1.9670 49.96MM
Overall Len 11.8110 300.00MM
Insert Size Ic 16
Cut Dia Max 1.9690 50.01MM
Machine Side Connection Type Cylindrical
Depth Of Cut Max 0.3150
Cut Dia Min 1.3390 34.01MM
Flutes/Inserts 3
Shank/Pilot Dia 1.6535 42.00MM
Tool Material Steel
Machine Side Connection Size 1.6535 42.00MM
Cutting & Machining Properties
Insert Style RC
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Fasteners & Connectors
Insert Screw 7061740
