  • TUNGALOY ERC16R040M32.0-02L Milling Cutter Button Cutter 1.575 Cutter Diameter Cylindrical Shank1.2598 9.842 OAL 2 Flute

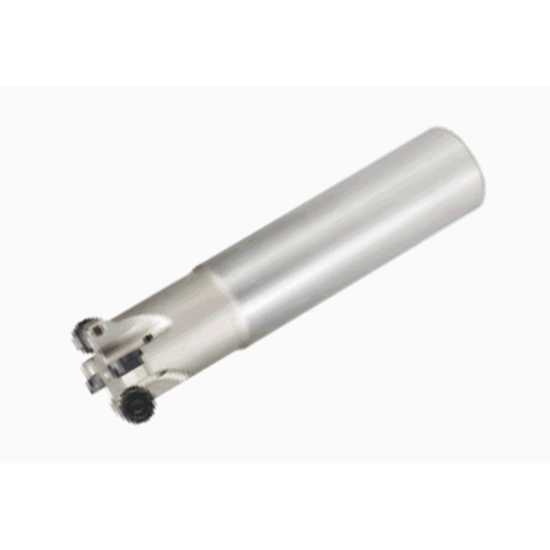

Picture of TUNGALOY ERC16R040M32.0-02L Milling Cutter Button Cutter 1.575 Cutter Diameter Cylindrical Shank1.2598 9.842 OAL 2 Flute

TUNGALOY ERC16R040M32.0-02L Milling Cutter Button Cutter 1.575 Cutter Diameter Cylindrical Shank1.2598 9.842 OAL 2 Flute

ANSI: ERC16R040M32.0-02L

ISO: ERC16R040M32.0-02L

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN3028908
Delivery date: 3-5 days
$672.40
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Application Ramp Milling, Face Milling, Round Milling, Pocket Milling
Insert Type Positive
Package Size 1
Insert/Tool Tool
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cut Dia Max 1.5750 40.01MM
Depth Of Cut Max 0.3150
Cut Dia Min 0.9450 24.00MM
Shank/Pilot Dia 1.2598 32.00MM
Overall Len 9.8425 250.00MM
Flutes/Inserts 2
Cutter Dia 1.5750 40.01MM
Tool Material Steel
Machine Side Connection Size 1.2598 32.00MM
Insert Size Ic 16
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Coolant Thru Yes
Insert Style RC
Fasteners & Connectors
Insert Screw 7061740
