  • TUNGALOY ERC16R040M32.0-02 Milling Cutter Button Cutter 1.575 Cutter Diameter Cylindrical Shank1.2598 5.905 OAL 2 Flute

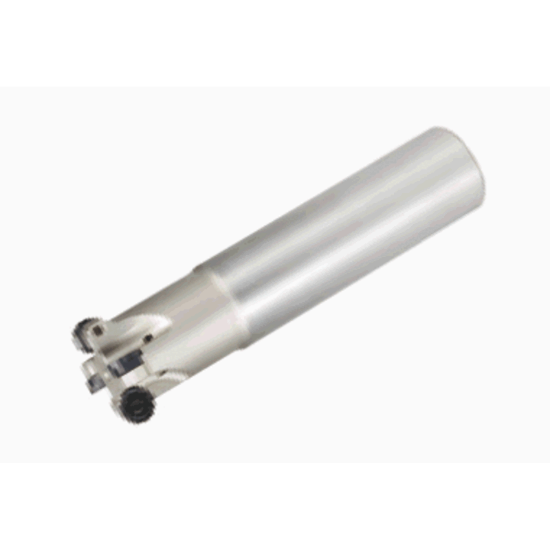

Picture of TUNGALOY ERC16R040M32.0-02 Milling Cutter Button Cutter 1.575 Cutter Diameter Cylindrical Shank1.2598 5.905 OAL 2 Flute

TUNGALOY ERC16R040M32.0-02 Milling Cutter Button Cutter 1.575 Cutter Diameter Cylindrical Shank1.2598 5.905 OAL 2 Flute

ANSI: ERC16R040M32.0-02

ISO: ERC16R040M32.0-02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN3028906
Delivery date: 3-5 days
$631.20

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Pocket Milling, Ramp Milling, Face Milling, Round Milling
Shipping State Illinois
Insert Type Positive
Package Size 1
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Made In USA No
Dimensional Specifications
Cutter Dia 1.5750 40.01MM
Tool Material Steel
Machine Side Connection Size 1.2598 32.00MM
Cut Dia Max 1.5750 40.01MM
Cut Dia Min 0.9450 24.00MM
Shank/Pilot Dia 1.2598 32.00MM
Insert Size Ic 16
Machine Side Connection Type Cylindrical
Overall Len 5.9055 150.00MM
Depth Of Cut Max 0.3150
Flutes/Inserts 2
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
Insert Style RC
Fasteners & Connectors
Insert Screw 7061740
