  • TUNGALOY EPYD06U2.00C1.25R08 Milling Cutter 90.0° 2.000 Cutter Diameter Cylindrical Shank1.2500 8 Flute

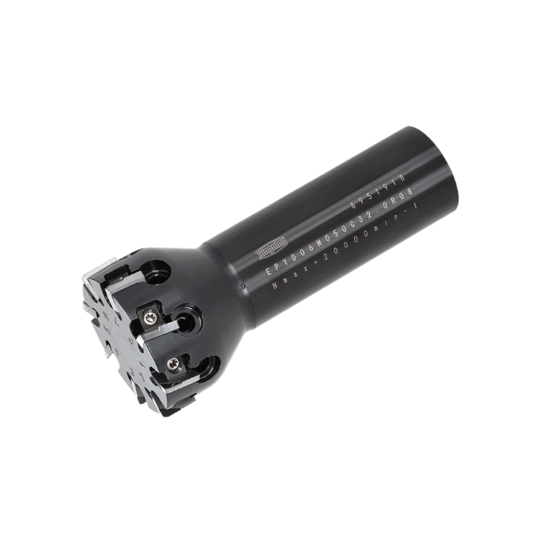

Picture of TUNGALOY EPYD06U2.00C1.25R08 Milling Cutter 90.0° 2.000 Cutter Diameter Cylindrical Shank1.2500 8 Flute

TUNGALOY EPYD06U2.00C1.25R08 Milling Cutter 90.0° 2.000 Cutter Diameter Cylindrical Shank1.2500 8 Flute

ANSI: EPYD06U2.00C1.25R08

ISO: EPYD06U2.00C1.25R08

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6782257
Delivery date: 3-5 days
$1,492.50

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Insert Type Negative
Shipping State Illinois
Insert/Tool Tool
Made In USA No
Dimensional Specifications
Cutter Dia 2.0000 50.80MM
Machine Side Connection Type Cylindrical
Depth Of Cut Max 0.1770
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Cut Dia Max 2.0790 52.81MM
Flutes/Inserts 8
Insert Size Ic 6
Cut Dia Min 2.0000 50.80MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Hand R/L Right
Coolant Thru Yes
Insert Style YD
Fasteners & Connectors
Clamp/Wedge 6777511
Clamp Screw 6538983
