  • TUNGALOY EPW13R063M32.0-05 Milling Cutter 90.0° 2.480 Cutter Diameter Cylindrical Shank1.2598 4.724 OAL 5 Flute

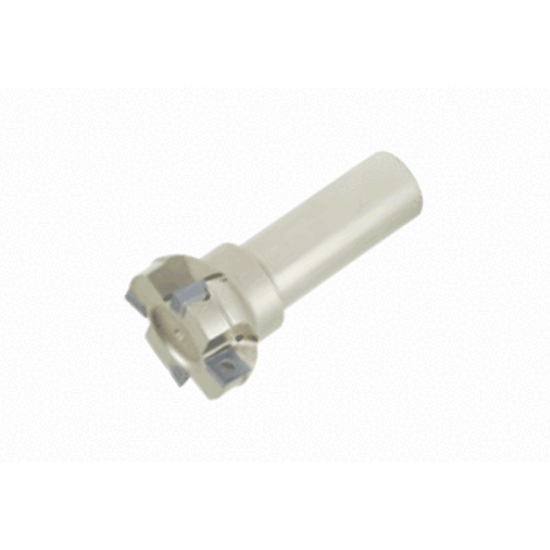

Picture of TUNGALOY EPW13R063M32.0-05 Milling Cutter 90.0° 2.480 Cutter Diameter Cylindrical Shank1.2598 4.724 OAL 5 Flute

TUNGALOY EPW13R063M32.0-05 Milling Cutter 90.0° 2.480 Cutter Diameter Cylindrical Shank1.2598 4.724 OAL 5 Flute

ANSI: EPW13R063M32.0-05

ISO: EPW13R063M32.0-05

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6849830
Delivery date: 3-5 days
$743.95

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Application Side Milling
Insert Type Positive
Package Size 1
Insert/Tool Tool
Shipping State Illinois
Made In USA No
Dimensional Specifications
Depth Of Cut Max 0.0394
Cut Dia Min 2.4800 62.99MM
Cut Dia Max 2.4800 62.99MM
Machine Side Connection Type Cylindrical
Insert Size Ic 13
Cutter Dia 2.4800 62.99MM
Shank/Pilot Dia 1.2598 32.00MM
Tool Material Steel
Overall Len 4.7244 120.00MM
Flutes/Inserts 5
Machine Side Connection Size 1.2598 32.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Hand R/L Right
Coolant Thru Yes
Insert Style SW
Seat/Nest 6846766
Fasteners & Connectors
Insert Screw 6815314
Seat Screw 6846768
