  • TUNGALOY EPW13R063M32.0-04 Milling Cutter 90.0° 2.480 Cutter Diameter Cylindrical Shank1.2598 4.724 OAL 4 Flute

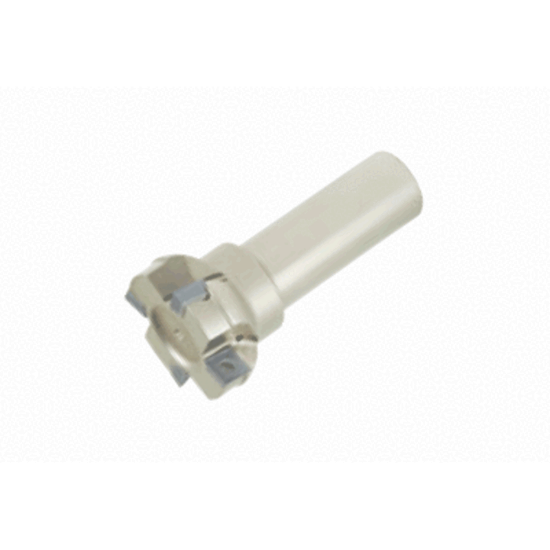

Picture of TUNGALOY EPW13R063M32.0-04 Milling Cutter 90.0° 2.480 Cutter Diameter Cylindrical Shank1.2598 4.724 OAL 4 Flute

TUNGALOY EPW13R063M32.0-04 Milling Cutter 90.0° 2.480 Cutter Diameter Cylindrical Shank1.2598 4.724 OAL 4 Flute

ANSI: EPW13R063M32.0-04

ISO: EPW13R063M32.0-04

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6849827
Delivery date: 3-5 days
$595.25

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Side Milling
Shipping State Illinois
Insert Application Roughing, Semi Finishing
Made In USA No
Insert Type Positive
Package Size 1
Dimensional Specifications
Overall Len 4.7244 120.00MM
Depth Of Cut Max 0.0394
Tool Material Steel
Machine Side Connection Size 1.2598 32.00MM
Flutes/Inserts 4
Insert Size Ic 13
Cutter Dia 2.4800 62.99MM
Shank/Pilot Dia 1.2598 32.00MM
Cut Dia Min 2.4800 62.99MM
Cut Dia Max 2.4800 62.99MM
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Coolant Thru Yes
Hand R/L Right
Insert Style SW
Seat/Nest 6846766
Insert Shape/Cutter Pocket Shape Square
Fasteners & Connectors
Insert Screw 6815314
Seat Screw 6846768
