  • TUNGALOY EPV16R150U0125W03L Milling Cutter 90.0° 1.500 Cutter Diameter Cylindrical Shank1.2500 10.00 OAL 3 Flute

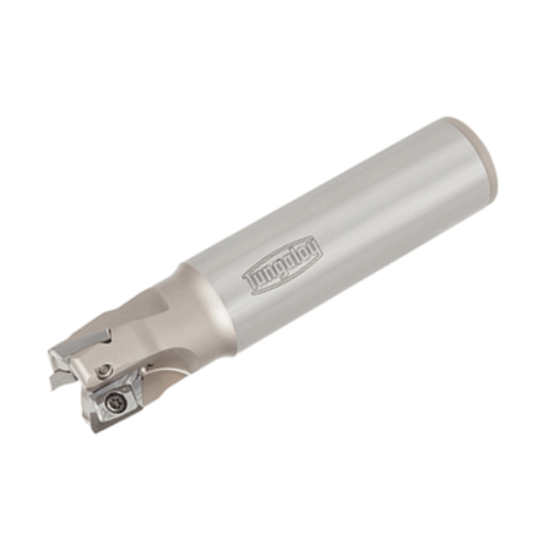

Picture of TUNGALOY EPV16R150U0125W03L Milling Cutter 90.0° 1.500 Cutter Diameter Cylindrical Shank1.2500 10.00 OAL 3 Flute

TUNGALOY EPV16R150U0125W03L Milling Cutter 90.0° 1.500 Cutter Diameter Cylindrical Shank1.2500 10.00 OAL 3 Flute

ANSI: EPV16R150U0125W03L

ISO: EPV16R150U0125W03L

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6103411
Delivery date: 3-5 days
$668.85

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Application Side Milling, Pocket Milling, Ramp Milling, Slot Milling, Face Milling
Shipping State Illinois
Insert Type Positive
Made In USA No
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 3
Insert Size Ic 16
Cutter Dia 1.5000 38.10MM - 1-1/2
Cut Dia Max 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Cylindrical
Overall Len 10.0000 254.00MM
Depth Of Cut Max 0.1575
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Cut Dia Min 1.5000 38.10MM - 1-1/2
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Right
Insert Style XV
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 4354895
