  • TUNGALOY EPV16R125U0125W03 Milling Cutter 90.0° 1.250 Cutter Diameter Cylindrical Shank1.2500 6.000 OAL 3 Flute

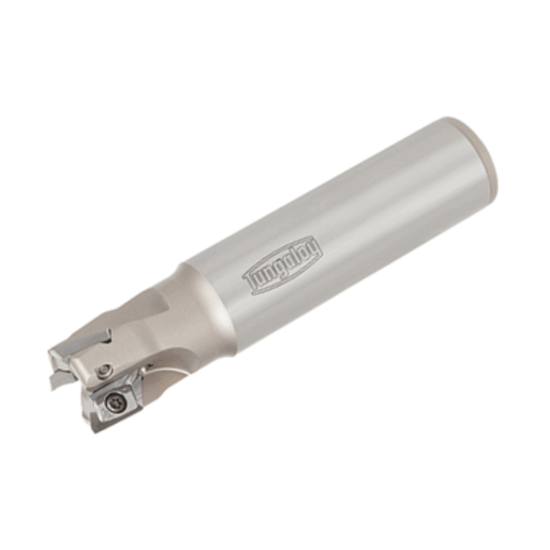

Picture of TUNGALOY EPV16R125U0125W03 Milling Cutter 90.0° 1.250 Cutter Diameter Cylindrical Shank1.2500 6.000 OAL 3 Flute

TUNGALOY EPV16R125U0125W03 Milling Cutter 90.0° 1.250 Cutter Diameter Cylindrical Shank1.2500 6.000 OAL 3 Flute

ANSI: EPV16R125U0125W03

ISO: EPV16R125U0125W03

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6103408
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Pocket Milling, Face Milling, Side Milling, Ramp Milling, Slot Milling
Made In USA No
Shipping State Illinois
Insert Application Roughing, Semi Finishing
Package Size 1
Insert Type Positive
Dimensional Specifications
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Depth Of Cut Max 0.6300
Cut Dia Max 1.2500 31.75MM - 1-1/4
Insert Size Ic 16
Cutter Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Cylindrical
Cut Dia Min 1.2500 31.75MM - 1-1/4
Overall Len 6.0000 152.40MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 3
Cutting & Machining Properties
Insert Style XV
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Right
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 4354895
