  • TUNGALOY EPV16R125U0125W02L Milling Cutter 90.0° 1.250 Cutter Diameter Cylindrical Shank1.2500 8.000 OAL 2 Flute

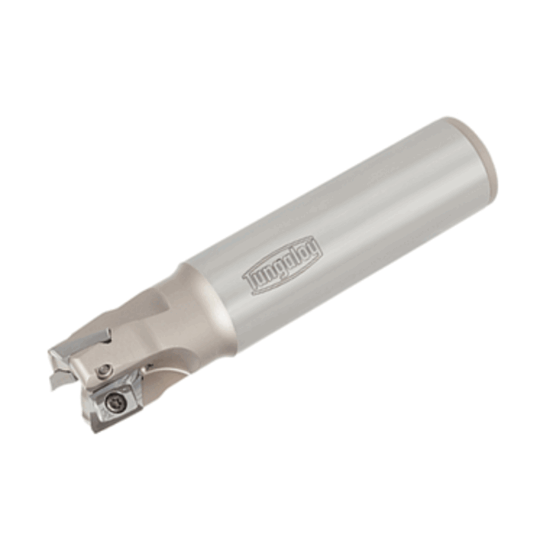

Picture of TUNGALOY EPV16R125U0125W02L Milling Cutter 90.0° 1.250 Cutter Diameter Cylindrical Shank1.2500 8.000 OAL 2 Flute

TUNGALOY EPV16R125U0125W02L Milling Cutter 90.0° 1.250 Cutter Diameter Cylindrical Shank1.2500 8.000 OAL 2 Flute

ANSI: EPV16R125U0125W02L

ISO: EPV16R125U0125W02L

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6103407
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Application Side Milling, Ramp Milling, Slot Milling, Face Milling, Pocket Milling
Insert Type Positive
Insert/Tool Tool
Package Size 1
Shipping State Illinois
Made In USA No
Dimensional Specifications
Insert Size Ic 16
Cutter Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Cylindrical
Cut Dia Min 1.2500 31.75MM - 1-1/4
Overall Len 8.0000 203.20MM
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Depth Of Cut Max 0.6300
Cut Dia Max 1.2500 31.75MM - 1-1/4
Flutes/Inserts 2
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Right
Coolant Thru Yes
Insert Style XV
Fasteners & Connectors
Insert Screw 4354895
