  • TUNGALOY EPV16R032M32.0-03 Milling Cutter 90.0° 1.260 Cutter Diameter Cylindrical Shank1.2598 5.905 OAL 3 Flute

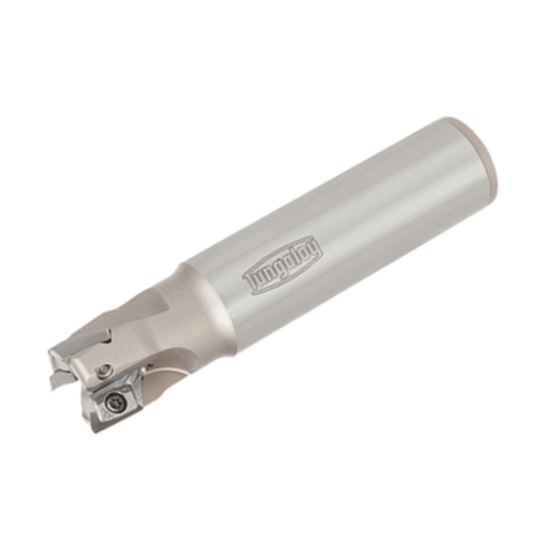

Picture of TUNGALOY EPV16R032M32.0-03 Milling Cutter 90.0° 1.260 Cutter Diameter Cylindrical Shank1.2598 5.905 OAL 3 Flute

TUNGALOY EPV16R032M32.0-03 Milling Cutter 90.0° 1.260 Cutter Diameter Cylindrical Shank1.2598 5.905 OAL 3 Flute

ANSI: EPV16R032M32.0-03

ISO: EPV16R032M32.0-03

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN3111044
Delivery date: 3-5 days
$585.85

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Tool
Application Pocket Milling, Face Milling, Slot Milling, Ramp Milling, Side Milling
Shipping State Illinois
Insert Type Positive
Package Size 1
Dimensional Specifications
Machine Side Connection Size 1.2598 32.00MM
Tool Material Steel
Cut Dia Max 1.2600 32.00MM
Flutes/Inserts 3
Insert Size Ic 16
Depth Of Cut Max 0.6299
Cutter Dia 1.2600 32.00MM
Cut Dia Min 1.2600 32.00MM
Machine Side Connection Type Cylindrical
Overall Len 5.9055 150.00MM
Shank/Pilot Dia 1.2598 32.00MM
Cutting & Machining Properties
Insert Style XV
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Right
Fasteners & Connectors
Insert Screw 4354896
