  • TUNGALOY EPV16R025M25.0-02L Milling Cutter 90.0° 0.984 Cutter Diameter Cylindrical Shank0.9843 6.692 OAL 2 Flute

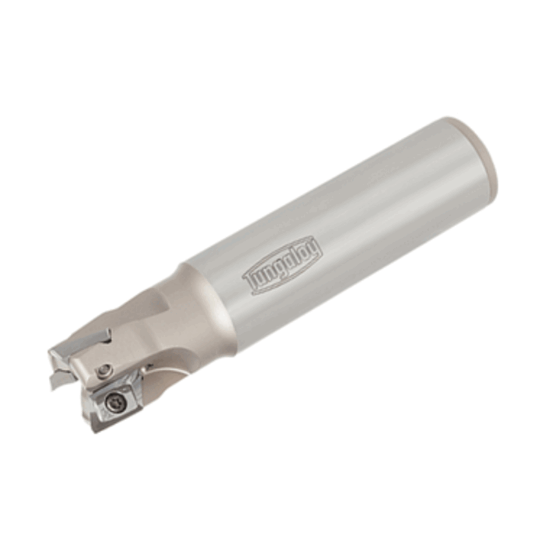

Picture of TUNGALOY EPV16R025M25.0-02L Milling Cutter 90.0° 0.984 Cutter Diameter Cylindrical Shank0.9843 6.692 OAL 2 Flute

TUNGALOY EPV16R025M25.0-02L Milling Cutter 90.0° 0.984 Cutter Diameter Cylindrical Shank0.9843 6.692 OAL 2 Flute

ANSI: EPV16R025M25.0-02L

ISO: EPV16R025M25.0-02L

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN3111042
Delivery date: 3-5 days
$505.75

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Application Side Milling, Face Milling, Ramp Milling, Slot Milling, Pocket Milling
Insert/Tool Tool
Insert Type Positive
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Tool Material Steel
Overall Len 6.6929 170.00MM
Cut Dia Max 0.9840 24.99MM
Flutes/Inserts 2
Cut Dia Min 0.9840 24.99MM
Machine Side Connection Size 0.9843 25.00MM
Shank/Pilot Dia 0.9844 25.00MM - 63/64
Insert Size Ic 16
Depth Of Cut Max 0.6299
Cutter Dia 0.9840 24.99MM
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Hand R/L Right
Coolant Thru Yes
Insert Style XV
Insert Shape/Cutter Pocket Shape Parallelogram
Fasteners & Connectors
Insert Screw 4354896
