  • TUNGALOY EPTN12M040C32.0R03N Milling Cutter 90.0° 1.575 Cutter Diameter Cylindrical Shank1.2598 4.527 OAL 3 Flute

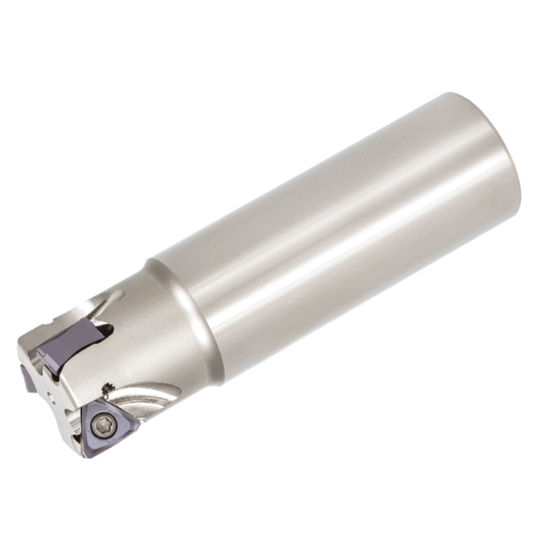

Picture of TUNGALOY EPTN12M040C32.0R03N Milling Cutter 90.0° 1.575 Cutter Diameter Cylindrical Shank1.2598 4.527 OAL 3 Flute

TUNGALOY EPTN12M040C32.0R03N Milling Cutter 90.0° 1.575 Cutter Diameter Cylindrical Shank1.2598 4.527 OAL 3 Flute

ANSI: EPTN12M040C32.0R03N

ISO: EPTN12M040C32.0R03N

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6730275
Delivery date: 3-5 days
$483.30

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Slot Milling
Insert Application Semi Finishing, Roughing
Package Size 1
Insert/Tool Tool
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cut Dia Max 1.5750 40.01MM
Overall Len 4.5276 115.00MM
Machine Side Connection Type Cylindrical
Depth Of Cut Max 0.4330
Shank/Pilot Dia 1.2598 32.00MM
Cut Dia Min 1.5750 40.01MM
Flutes/Inserts 3
Insert Size Ic 12
Machine Side Connection Size 1.2598 32.00MM
Cutter Dia 1.5750 40.01MM
Tool Material Steel
Cutting & Machining Properties
Insert Style TN
Hand R/L Right
Insert Shape/Cutter Pocket Shape Triangle
Coolant Thru No
Fasteners & Connectors
Insert Screw 6815314
