  • TUNGALOY EPTN07U1.00C1.00R03 Milling Cutter 90.0° 1.000 Cutter Diameter Cylindrical Shank1.0000 4.500 OAL 3 Flute

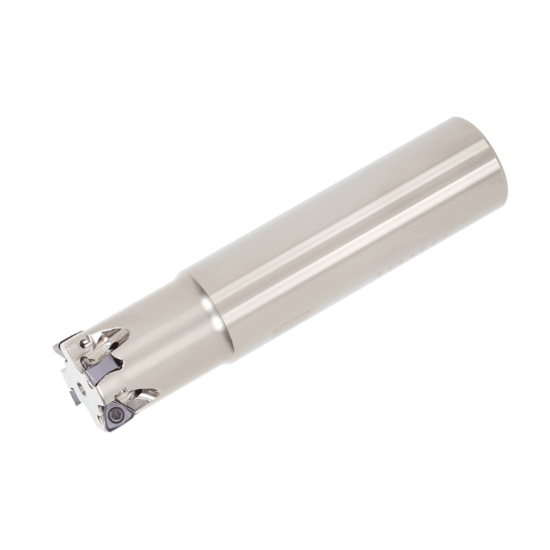

Picture of TUNGALOY EPTN07U1.00C1.00R03 Milling Cutter 90.0° 1.000 Cutter Diameter Cylindrical Shank1.0000 4.500 OAL 3 Flute

TUNGALOY EPTN07U1.00C1.00R03 Milling Cutter 90.0° 1.000 Cutter Diameter Cylindrical Shank1.0000 4.500 OAL 3 Flute

ANSI: EPTN07U1.00C1.00R03

ISO: EPTN07U1.00C1.00R03

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6786247
Delivery date: 3-5 days
$424.65

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Application Face Milling, Side Milling
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Type Cylindrical
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Depth Of Cut Max 0.2560
Overall Len 4.5000 114.30MM
Flutes/Inserts 3
Cutter Dia 1.0000 25.40MM
Insert Size Ic 7
Cut Dia Max 1.0000 25.40MM
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Cutting & Machining Properties
Insert Style TN
Hand R/L Right
Insert Shape/Cutter Pocket Shape Triangle
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 6851335
