  • TUNGALOY EPTN07U0.75C0.75R02 Milling Cutter 90.0° 0.750 Cutter Diameter Cylindrical Shank0.7500 3.500 OAL 2 Flute

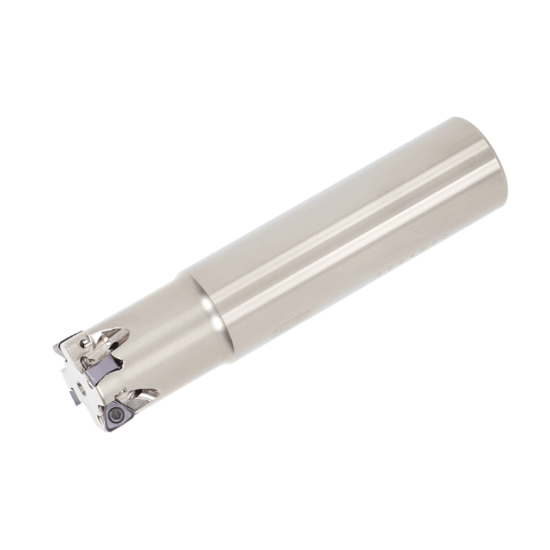

Picture of TUNGALOY EPTN07U0.75C0.75R02 Milling Cutter 90.0° 0.750 Cutter Diameter Cylindrical Shank0.7500 3.500 OAL 2 Flute

TUNGALOY EPTN07U0.75C0.75R02 Milling Cutter 90.0° 0.750 Cutter Diameter Cylindrical Shank0.7500 3.500 OAL 2 Flute

ANSI: EPTN07U0.75C0.75R02

ISO: EPTN07U0.75C0.75R02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6786244
Delivery date: 3-5 days
$375.25

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Application Side Milling, Face Milling
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Insert Size Ic 7
Depth Of Cut Max 0.2560
Overall Len 3.5000 88.90MM
Cut Dia Max 0.7500 19.05MM - 3/4
Tool Material Steel
Flutes/Inserts 2
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Cut Dia Min 0.7500 19.05MM - 3/4
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Triangle
Insert Style TN
Hand R/L Right
Fasteners & Connectors
Insert Screw 6851335
