  • TUNGALOY EPTN07M032C32.0R05 Milling Cutter 90.0° 1.260 Cutter Diameter Cylindrical Shank1.2598 4.527 OAL 5 Flute

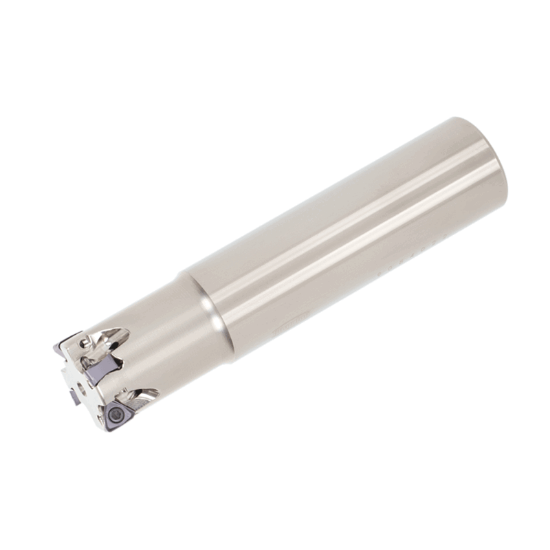

Picture of TUNGALOY EPTN07M032C32.0R05 Milling Cutter 90.0° 1.260 Cutter Diameter Cylindrical Shank1.2598 4.527 OAL 5 Flute

TUNGALOY EPTN07M032C32.0R05 Milling Cutter 90.0° 1.260 Cutter Diameter Cylindrical Shank1.2598 4.527 OAL 5 Flute

ANSI: EPTN07M032C32.0R05

ISO: EPTN07M032C32.0R05

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6776473
Delivery date: 3-5 days
$500.75

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Package Size 1
Application Face Milling, Side Milling
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Size 1.2598 32.00MM
Shank/Pilot Dia 1.2598 32.00MM
Depth Of Cut Max 0.2362
Cutter Dia 1.2600 32.00MM
Insert Size Ic 7
Machine Side Connection Type Cylindrical
Cut Dia Min 1.2600 32.00MM
Overall Len 4.5276 115.00MM
Cut Dia Max 1.2600 32.00MM
Tool Material Steel
Flutes/Inserts 5
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Triangle
Insert Style TN
Hand R/L Right
Fasteners & Connectors
Insert Screw 6851335
