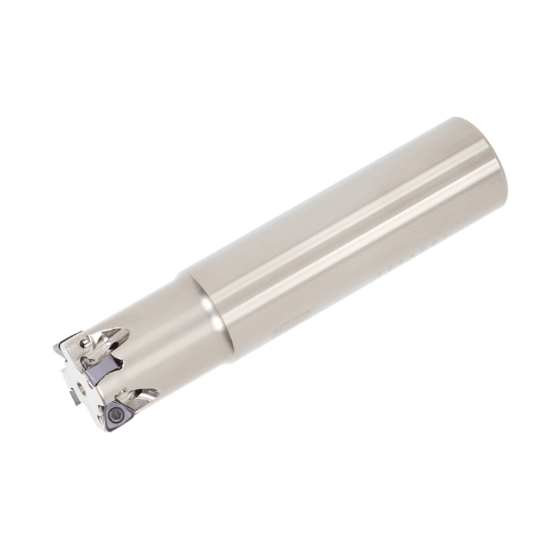

TUNGALOY EPTN07M025C25.0R04 Milling Cutter 90.0° 0.984 Cutter Diameter Cylindrical Shank0.9843 4.527 OAL 4 Flute

ANSI: EPTN07M025C25.0R04

ISO: EPTN07M025C25.0R04

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6774145
Delivery date: 3-5 days
$454.40

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Application Side Milling, Face Milling
Insert/Tool Tool
Shipping State Illinois
Package Size 1
Dimensional Specifications
Insert Size Ic 7
Shank/Pilot Dia 0.9844 25.00MM - 63/64
Flutes/Inserts 4
Overall Len 4.5276 115.00MM
Tool Material Steel
Machine Side Connection Size 0.9843 25.00MM
Depth Of Cut Max 0.0394
Cutter Dia 0.9840 24.99MM
Cut Dia Min 1.2600 32.00MM
Machine Side Connection Type Cylindrical
Cut Dia Max 0.9840 24.99MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Insert Style TN
Hand R/L Right
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 6851335
