  • TUNGALOY EPTC16U2.00W1.25R04 Milling Cutter 90.0° 2.000 Cutter Diameter Cylindrical Shank1.2500 4.500 OAL 4 Flute

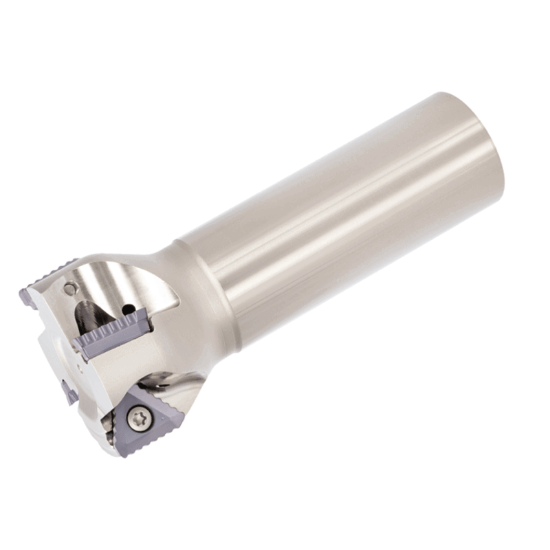

Picture of TUNGALOY EPTC16U2.00W1.25R04 Milling Cutter 90.0° 2.000 Cutter Diameter Cylindrical Shank1.2500 4.500 OAL 4 Flute

TUNGALOY EPTC16U2.00W1.25R04 Milling Cutter 90.0° 2.000 Cutter Diameter Cylindrical Shank1.2500 4.500 OAL 4 Flute

ANSI: EPTC16U2.00W1.25R04

ISO: EPTC16U2.00W1.25R04

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6735586
Delivery date: 3-5 days
$547.50

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Side Milling
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Depth Of Cut Max 0.2362
Insert Size Ic 16
Cut Dia Min 2.0000 50.80MM
Cut Dia Max 2.0000 50.80MM
Machine Side Connection Type Cylindrical
Cutter Dia 2.0000 50.80MM
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Flutes/Inserts 4
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 4.5000 114.30MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Insert Style TC
Hand R/L Right
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 4352055
