  • TUNGALOY EPTC16M050C42.0R02L Milling Cutter 90.0° 1.967 Cutter Diameter Cylindrical Shank1.6535 14.17 OAL 2 Flute

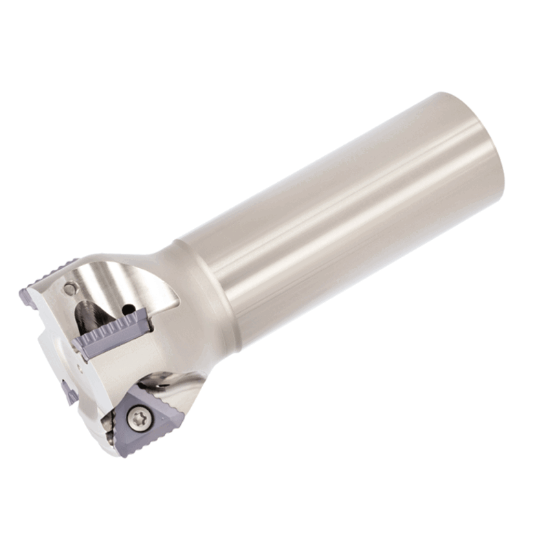

Picture of TUNGALOY EPTC16M050C42.0R02L Milling Cutter 90.0° 1.967 Cutter Diameter Cylindrical Shank1.6535 14.17 OAL 2 Flute

TUNGALOY EPTC16M050C42.0R02L Milling Cutter 90.0° 1.967 Cutter Diameter Cylindrical Shank1.6535 14.17 OAL 2 Flute

ANSI: EPTC16M050C42.0R02L

ISO: EPTC16M050C42.0R02L

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6735585
Delivery date: 3-5 days
$484.90

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Insert Application Roughing, Semi Finishing
Package Size 1
Insert Type Positive
Application Face Milling, Side Milling
Insert/Tool Tool
Dimensional Specifications
Cutter Dia 1.9670 49.96MM
Depth Of Cut Max 0.6300
Flutes/Inserts 2
Machine Side Connection Size 1.6535 42.00MM
Overall Len 14.1732 360.00MM
Insert Size Ic 16
Cut Dia Max 1.9690 50.01MM
Machine Side Connection Type Cylindrical
Cut Dia Min 1.9690 50.01MM
Shank/Pilot Dia 1.6535 42.00MM
Tool Material Steel
Cutting & Machining Properties
Insert Style TC
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Triangle
Hand R/L Right
Fasteners & Connectors
Insert Screw 4352055
