  • TUNGALOY EPS17063RL Milling Cutter 90.0° 2.480 Cutter Diameter Cylindrical Shank1.6535 14.17 OAL 3 Flute

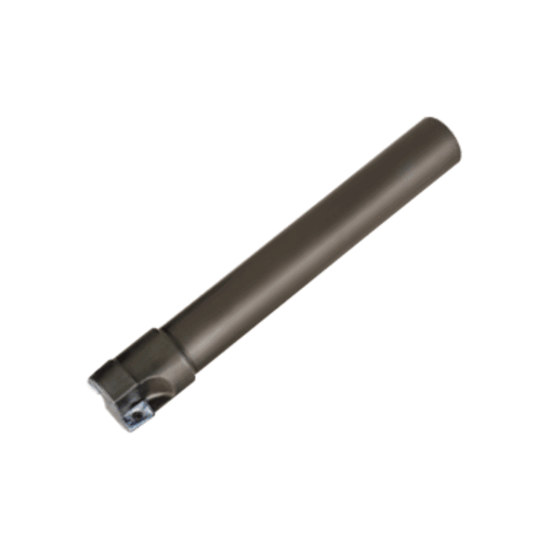

Picture of TUNGALOY EPS17063RL Milling Cutter 90.0° 2.480 Cutter Diameter Cylindrical Shank1.6535 14.17 OAL 3 Flute

TUNGALOY EPS17063RL Milling Cutter 90.0° 2.480 Cutter Diameter Cylindrical Shank1.6535 14.17 OAL 3 Flute

ANSI: EPS17063RL

ISO: EPS17063RL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6821289
Delivery date: 3-5 days
$567.50

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Application Pocket Milling, Side Milling, Ramp Milling, Slot Milling, Face Milling
Shipping State Illinois
Insert Type Positive
Made In USA No
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Depth Of Cut Max 0.2756
Cut Dia Min 2.4800 62.99MM
Cut Dia Max 2.4800 62.99MM
Machine Side Connection Type Cylindrical
Tool Material Steel
Shank/Pilot Dia 1.6535 42.00MM
Insert Size Ic 17
Overall Len 14.1732 360.00MM
Cutter Dia 2.4800 62.99MM
Machine Side Connection Size 1.6535 42.00MM
Flutes/Inserts 3
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Right
Insert Style AS
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 6816784
