  • TUNGALOY EPS17032RL Milling Cutter 90.0° 1.260 Cutter Diameter Cylindrical Shank1.2598 10.03 OAL 2 Flute

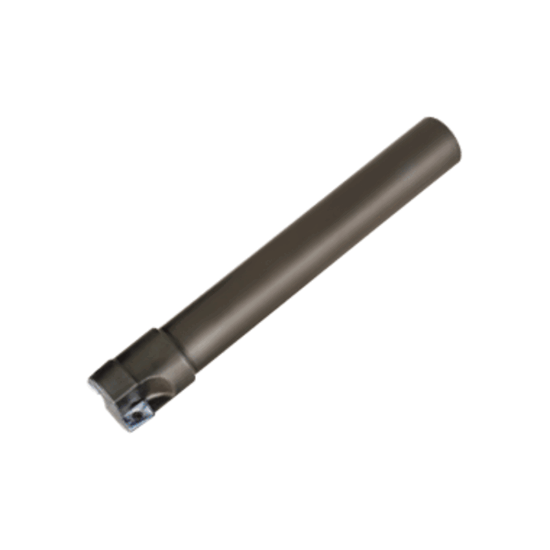

Picture of TUNGALOY EPS17032RL Milling Cutter 90.0° 1.260 Cutter Diameter Cylindrical Shank1.2598 10.03 OAL 2 Flute

TUNGALOY EPS17032RL Milling Cutter 90.0° 1.260 Cutter Diameter Cylindrical Shank1.2598 10.03 OAL 2 Flute

ANSI: EPS17032RL

ISO: EPS17032RL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6821282
Delivery date: 3-5 days
$454.25

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Application Ramp Milling, Side Milling, Slot Milling, Face Milling, Pocket Milling
Insert Type Positive
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Machine Side Connection Size 1.2598 32.00MM
Insert Size Ic 17
Cutter Dia 1.2600 32.00MM
Shank/Pilot Dia 1.2598 32.00MM
Depth Of Cut Max 0.6378
Machine Side Connection Type Cylindrical
Overall Len 10.0394 255.00MM
Cut Dia Max 1.2600 32.00MM
Tool Material Steel
Cut Dia Min 1.2600 32.00MM
Flutes/Inserts 2
Cutting & Machining Properties
Insert Style AS
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Right
Fasteners & Connectors
Insert Screw 6816784
