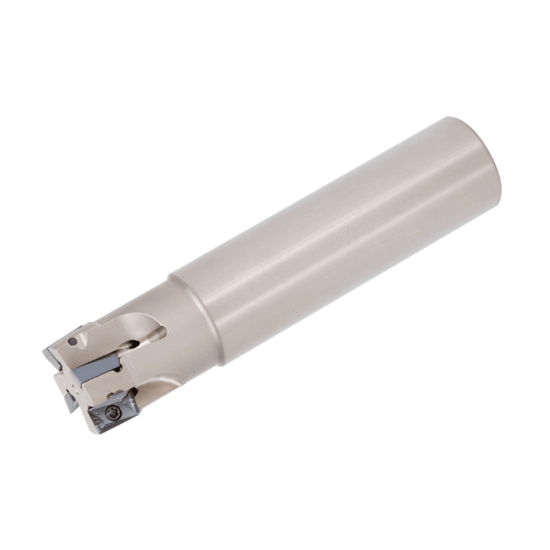

Picture of TUNGALOY EPS11100RSBU-3/4 Milling Cutter 90.0° 1.000 Cutter Diameter Cylindrical Shank0.7500 3.738 OAL 4 Flute

TUNGALOY EPS11100RSBU-3/4 Milling Cutter 90.0° 1.000 Cutter Diameter Cylindrical Shank0.7500 3.738 OAL 4 Flute

ANSI: EPS11100RSBU-3/4

ISO: EPS11100RSBU-3/4

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6850473
Delivery date: 3-5 days
$393.75

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Application Ramp Milling, Side Milling, Face Milling, Slot Milling, Pocket Milling
Package Size 1
Insert Type Positive
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Size 0.7500 19.05MM
Cut Dia Max 1.0000 25.40MM
Cutter Dia 1.0000 25.40MM
Flutes/Inserts 4
Depth Of Cut Max 0.6420
Machine Side Connection Type Cylindrical
Insert Size Ic 11
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Overall Len 3.7380 94.95MM
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AS
Fasteners & Connectors
Insert Screw 6815313
