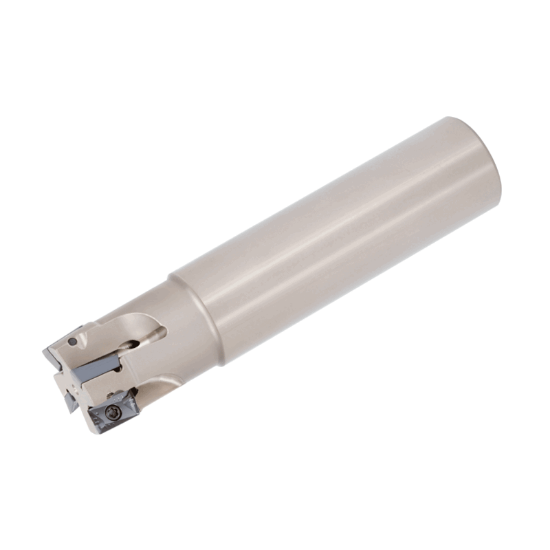

Picture of TUNGALOY EPS11075RSBU Milling Cutter 90.0° 0.750 Cutter Diameter Weldon 0.7500 3.543 OAL 3 Flute

TUNGALOY EPS11075RSBU Milling Cutter 90.0° 0.750 Cutter Diameter Weldon 0.7500 3.543 OAL 3 Flute

ANSI: EPS11075RSBU

ISO: EPS11075RSBU

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6821734
Delivery date: 3-5 days
$320.80

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Insert Type Positive
Application Face Milling, Ramp Milling, Slot Milling, Side Milling, Pocket Milling
Insert Application Roughing, Semi Finishing
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Overall Len 3.5430 89.99MM
Insert Size Ic 11
Cut Dia Min 0.7500 19.05MM - 3/4
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 3
Cut Dia Max 0.7500 19.05MM - 3/4
Machine Side Connection Type Weldon
Depth Of Cut Max 0.5910
Cutter Dia 0.7500 19.05MM - 3/4
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Cutting & Machining Properties
Insert Style AS
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Right
Fasteners & Connectors
Insert Screw 6819732
