  • TUNGALOY EPS11062RSU Milling Cutter 90.0° 0.625 Cutter Diameter Cylindrical Shank0.6250 3.346 OAL 2 Flute

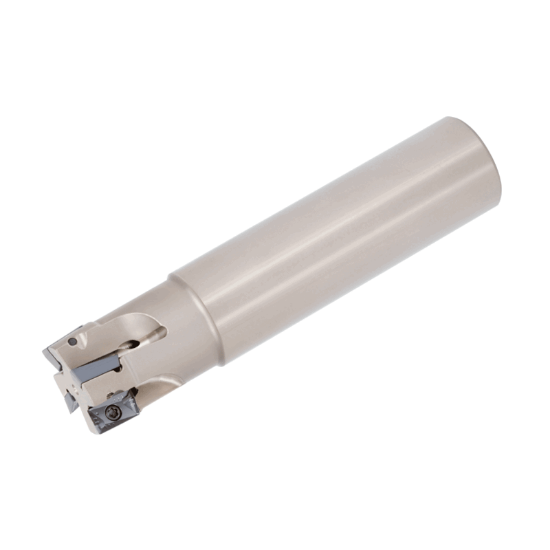

Picture of TUNGALOY EPS11062RSU Milling Cutter 90.0° 0.625 Cutter Diameter Cylindrical Shank0.6250 3.346 OAL 2 Flute

TUNGALOY EPS11062RSU Milling Cutter 90.0° 0.625 Cutter Diameter Cylindrical Shank0.6250 3.346 OAL 2 Flute

ANSI: EPS11062RSU

ISO: EPS11062RSU

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6829499
Delivery date: 3-5 days
$307.95

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Insert Type Positive
Application Face Milling, Ramp Milling, Slot Milling, Side Milling, Pocket Milling
Package Size 1
Insert/Tool Tool
Made In USA No
Shipping State Illinois
Dimensional Specifications
Flutes/Inserts 2
Insert Size Ic 11
Machine Side Connection Size 0.6250 15.88MM
Cut Dia Max 0.6250 15.88MM - 5/8
Tool Material Steel
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Overall Len 3.3460 84.99MM
Depth Of Cut Max 0.4170
Cutter Dia 0.6250 15.88MM - 5/8
Cut Dia Min 0.6250 15.88MM - 5/8
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Coolant Thru Yes
Hand R/L Right
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AS
Fasteners & Connectors
Insert Screw 6819732
