  • TUNGALOY EPS11062RLU Milling Cutter 90.0° 0.625 Cutter Diameter Cylindrical Shank0.6250 5.750 OAL 2 Flute

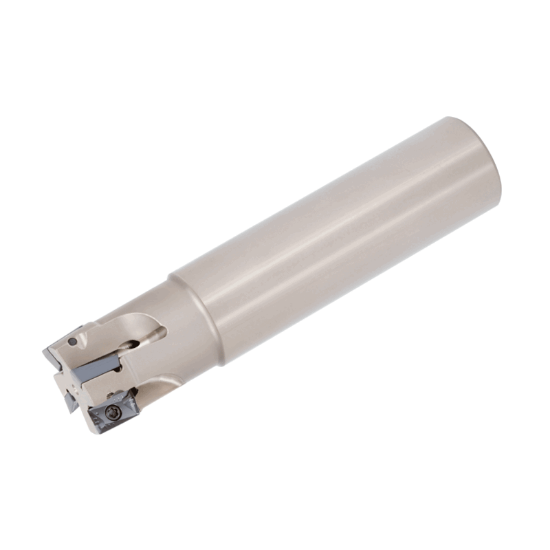

Picture of TUNGALOY EPS11062RLU Milling Cutter 90.0° 0.625 Cutter Diameter Cylindrical Shank0.6250 5.750 OAL 2 Flute

TUNGALOY EPS11062RLU Milling Cutter 90.0° 0.625 Cutter Diameter Cylindrical Shank0.6250 5.750 OAL 2 Flute

ANSI: EPS11062RLU

ISO: EPS11062RLU

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6844297
Delivery date: 3-5 days
$365.95

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application Ramp Milling, Slot Milling, Pocket Milling, Face Milling, Side Milling
Insert/Tool Tool
Insert Type Positive
Insert Application Semi Finishing, Roughing
Package Size 1
Dimensional Specifications
Machine Side Connection Type Cylindrical
Overall Len 5.7500 146.05MM
Cutter Dia 0.6250 15.88MM - 5/8
Cut Dia Max 0.6250 15.88MM - 5/8
Tool Material Steel
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Insert Size Ic 11
Machine Side Connection Size 0.6250 15.88MM
Depth Of Cut Max 0.0394
Flutes/Inserts 2
Cut Dia Min 0.6250 15.88MM - 5/8
Cutting & Machining Properties
Insert Style AS
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Right
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 6819732
