  • TUNGALOY EPS11050RSU Milling Cutter 90.0° 0.500 Cutter Diameter Cylindrical Shank0.6250 3.346 OAL 1 Flute

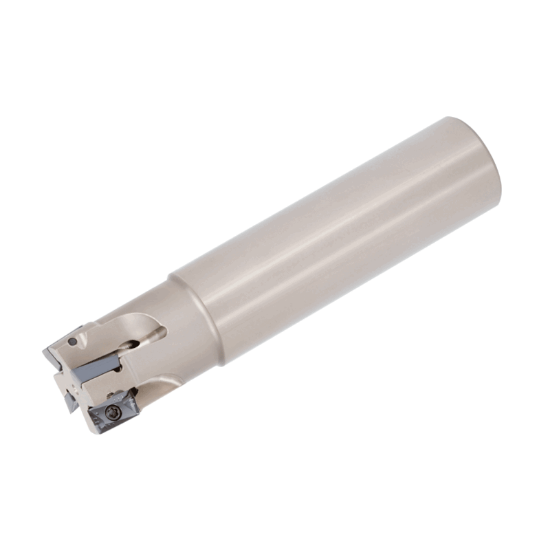

Picture of TUNGALOY EPS11050RSU Milling Cutter 90.0° 0.500 Cutter Diameter Cylindrical Shank0.6250 3.346 OAL 1 Flute

TUNGALOY EPS11050RSU Milling Cutter 90.0° 0.500 Cutter Diameter Cylindrical Shank0.6250 3.346 OAL 1 Flute

ANSI: EPS11050RSU

ISO: EPS11050RSU

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6829498
Delivery date: 3-5 days
$198.85

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application Roughing, Semi Finishing
Made In USA No
Application Side Milling, Face Milling, Ramp Milling, Slot Milling, Pocket Milling
Package Size 1
Insert Type Positive
Shipping State Illinois
Dimensional Specifications
Cut Dia Min 0.5000 12.70MM - 1/2
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Overall Len 3.3460 84.99MM
Flutes/Inserts 1
Machine Side Connection Type Cylindrical
Depth Of Cut Max 0.4170
Cut Dia Max 0.5000 12.70MM - 1/2
Insert Size Ic 11
Machine Side Connection Size 0.6250 15.88MM
Cutter Dia 0.5000 12.70MM - 1/2
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Right
Insert Style AS
Fasteners & Connectors
Insert Screw 6819732
