  • TUNGALOY EPS11050RLU Milling Cutter 90.0° 0.500 Cutter Diameter Cylindrical Shank0.6250 5.000 OAL 1 Flute

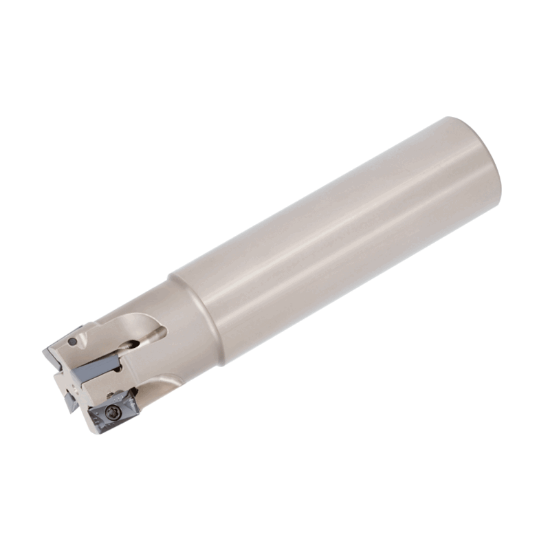

Picture of TUNGALOY EPS11050RLU Milling Cutter 90.0° 0.500 Cutter Diameter Cylindrical Shank0.6250 5.000 OAL 1 Flute

TUNGALOY EPS11050RLU Milling Cutter 90.0° 0.500 Cutter Diameter Cylindrical Shank0.6250 5.000 OAL 1 Flute

ANSI: EPS11050RLU

ISO: EPS11050RLU

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6843441
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Side Milling, Pocket Milling, Ramp Milling, Slot Milling
Package Size 1
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Dimensional Specifications
Insert Size Ic 11
Machine Side Connection Size 0.6250 15.88MM
Flutes/Inserts 1
Cut Dia Max 0.5000 12.70MM - 1/2
Overall Len 5.0000 127.00MM
Cutter Dia 0.5000 12.70MM - 1/2
Tool Material Steel
Cut Dia Min 0.5000 12.70MM - 1/2
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Machine Side Connection Type Cylindrical
Depth Of Cut Max 0.6400
Cutting & Machining Properties
Hand R/L Right
Insert Style AS
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Fasteners & Connectors
Insert Screw 6819732
