  • TUNGALOY EPQ18R040M32.0W03 Milling Cutter 90.0° 1.575 Cutter Diameter Cylindrical Shank1.2598 4.330 OAL 3 Flute

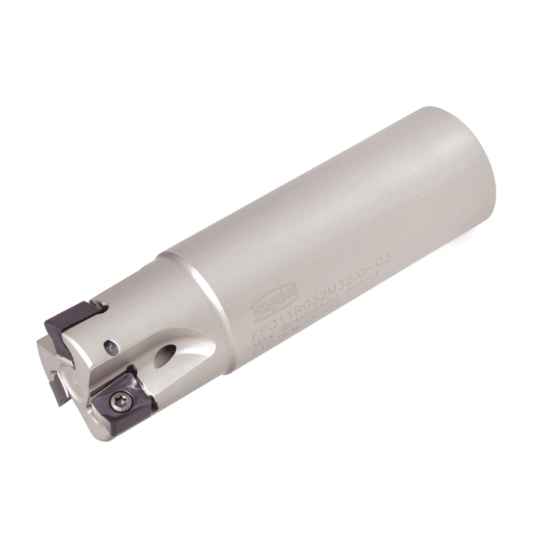

Picture of TUNGALOY EPQ18R040M32.0W03 Milling Cutter 90.0° 1.575 Cutter Diameter Cylindrical Shank1.2598 4.330 OAL 3 Flute

TUNGALOY EPQ18R040M32.0W03 Milling Cutter 90.0° 1.575 Cutter Diameter Cylindrical Shank1.2598 4.330 OAL 3 Flute

ANSI: EPQ18R040M32.0W03

ISO: EPQ18R040M32.0W03

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6861226
Delivery date: 3-5 days
$549.65

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling
Insert Application Semi Finishing, Roughing
Package Size 1
Insert Type Negative
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Depth Of Cut Max 0.6290
Cut Dia Max 1.5750 40.01MM
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 1.2598 32.00MM
Overall Len 4.3307 110.00MM
Cut Dia Min 1.5750 40.01MM
Flutes/Inserts 3
Insert Size Ic 18
Machine Side Connection Size 1.2598 32.00MM
Cutter Dia 1.5750 40.01MM
Tool Material Steel
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Right
Insert Style LQ
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7000219
