  • TUNGALOY EPQ11R150U0125W04 Milling Cutter 90.0° 1.500 Cutter Diameter Cylindrical Shank1.2500 4.000 OAL 4 Flute

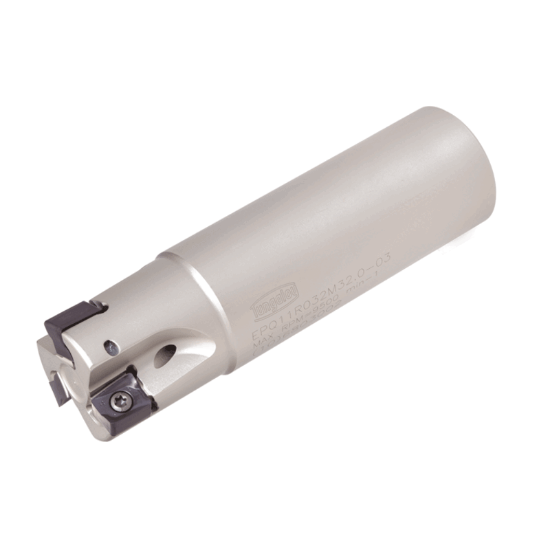

Picture of TUNGALOY EPQ11R150U0125W04 Milling Cutter 90.0° 1.500 Cutter Diameter Cylindrical Shank1.2500 4.000 OAL 4 Flute

TUNGALOY EPQ11R150U0125W04 Milling Cutter 90.0° 1.500 Cutter Diameter Cylindrical Shank1.2500 4.000 OAL 4 Flute

ANSI: EPQ11R150U0125W04

ISO: EPQ11R150U0125W04

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6861305
Delivery date: 3-5 days
$514.40

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Package Size 1
Insert Type Negative
Made In USA No
Shipping State Illinois
Application Face Milling, Side Milling
Insert/Tool Tool
Dimensional Specifications
Depth Of Cut Max 0.3540
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 4
Cutter Dia 1.5000 38.10MM - 1-1/2
Cut Dia Max 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.2500 31.75MM
Insert Size Ic 11
Cut Dia Min 1.5000 38.10MM - 1-1/2
Tool Material Steel
Overall Len 4.0000 101.60MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Style LQ
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Right
Fasteners & Connectors
Insert Screw 7002495
