  • TUNGALOY EPQ11R100U0100W02 Milling Cutter 90.0° 1.000 Cutter Diameter Cylindrical Shank1.0000 3.500 OAL 2 Flute

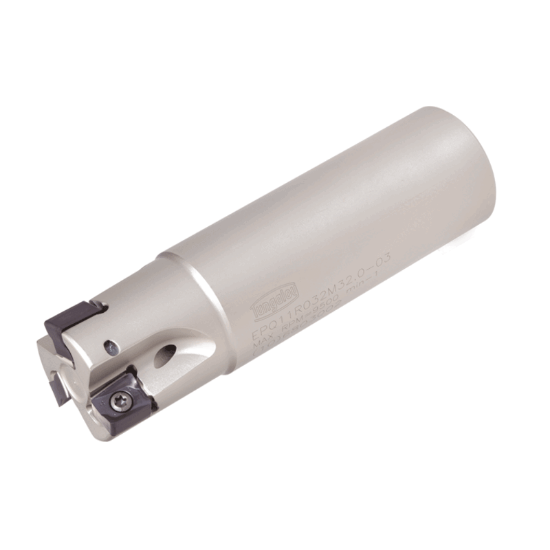

Picture of TUNGALOY EPQ11R100U0100W02 Milling Cutter 90.0° 1.000 Cutter Diameter Cylindrical Shank1.0000 3.500 OAL 2 Flute

TUNGALOY EPQ11R100U0100W02 Milling Cutter 90.0° 1.000 Cutter Diameter Cylindrical Shank1.0000 3.500 OAL 2 Flute

ANSI: EPQ11R100U0100W02

ISO: EPQ11R100U0100W02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6861292
Delivery date: 3-5 days
$396.85

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Application Side Milling, Face Milling
Insert/Tool Tool
Package Size 1
Shipping State Illinois
Insert Type Negative
Made In USA No
Dimensional Specifications
Cut Dia Max 1.0000 25.40MM
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Insert Size Ic 11
Cutter Dia 1.0000 25.40MM
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Flutes/Inserts 2
Depth Of Cut Max 0.3540
Shank/Pilot Dia 1.0000 25.40MM
Overall Len 3.5000 88.90MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Right
Coolant Thru Yes
Insert Style LQ
Fasteners & Connectors
Insert Screw 7002495
