  • TUNGALOY EPQ11R032M32.0-03 Milling Cutter 90.0° 1.260 Cutter Diameter Cylindrical Shank1.2598 4.527 OAL 3 Flute

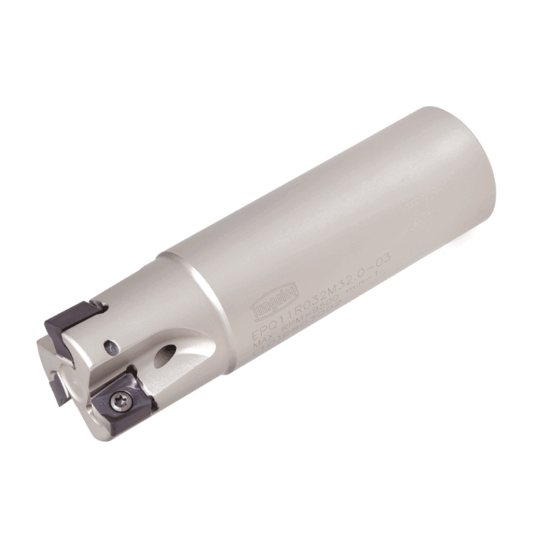

Picture of TUNGALOY EPQ11R032M32.0-03 Milling Cutter 90.0° 1.260 Cutter Diameter Cylindrical Shank1.2598 4.527 OAL 3 Flute

TUNGALOY EPQ11R032M32.0-03 Milling Cutter 90.0° 1.260 Cutter Diameter Cylindrical Shank1.2598 4.527 OAL 3 Flute

ANSI: EPQ11R032M32.0-03

ISO: EPQ11R032M32.0-03

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6861259
Delivery date: 3-5 days
$472.25

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Application Face Milling, Side Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Dimensional Specifications
Tool Material Steel
Machine Side Connection Size 1.2598 32.00MM
Cut Dia Max 1.2600 32.00MM
Insert Size Ic 11
Shank/Pilot Dia 1.2598 32.00MM
Depth Of Cut Max 0.3540
Flutes/Inserts 3
Cut Dia Min 1.2600 32.00MM
Machine Side Connection Type Cylindrical
Cutter Dia 1.2600 32.00MM
Overall Len 4.5276 115.00MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Style LQ
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Right
Fasteners & Connectors
Insert Screw 7002495
