  • TUNGALOY EPQ11R025M25.0-02 Milling Cutter 90.0° 0.984 Cutter Diameter Cylindrical Shank0.9843 3.937 OAL 2 Flute

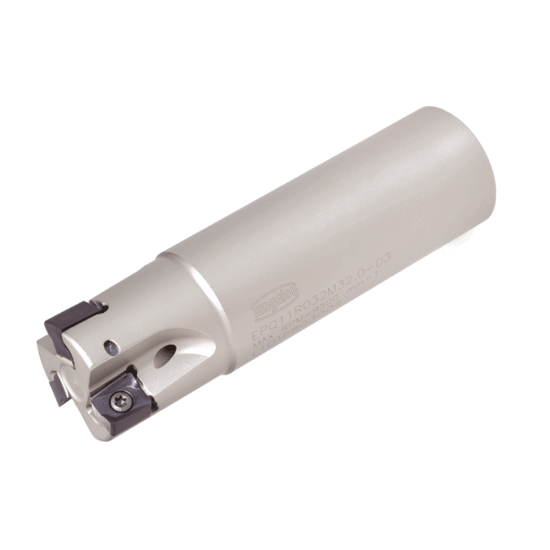

Picture of TUNGALOY EPQ11R025M25.0-02 Milling Cutter 90.0° 0.984 Cutter Diameter Cylindrical Shank0.9843 3.937 OAL 2 Flute

TUNGALOY EPQ11R025M25.0-02 Milling Cutter 90.0° 0.984 Cutter Diameter Cylindrical Shank0.9843 3.937 OAL 2 Flute

ANSI: EPQ11R025M25.0-02

ISO: EPQ11R025M25.0-02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6861258
Delivery date: 3-5 days
$396.85

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Application Side Milling, Face Milling
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Depth Of Cut Max 0.3540
Cut Dia Min 0.9840 24.99MM
Tool Material Steel
Machine Side Connection Size 0.9843 25.00MM
Overall Len 3.9370 100.00MM
Cut Dia Max 0.9840 24.99MM
Shank/Pilot Dia 0.9844 25.00MM - 63/64
Flutes/Inserts 2
Insert Size Ic 11
Cutter Dia 0.9840 24.99MM
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Coolant Thru Yes
Insert Style LQ
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Right
Fasteners & Connectors
Insert Screw 7002495
