  • TUNGALOY EPO18R200U0125W05 Milling Cutter 90.0° 2.000 Cutter Diameter Weldon 1.2500 4.500 OAL 4 Flute

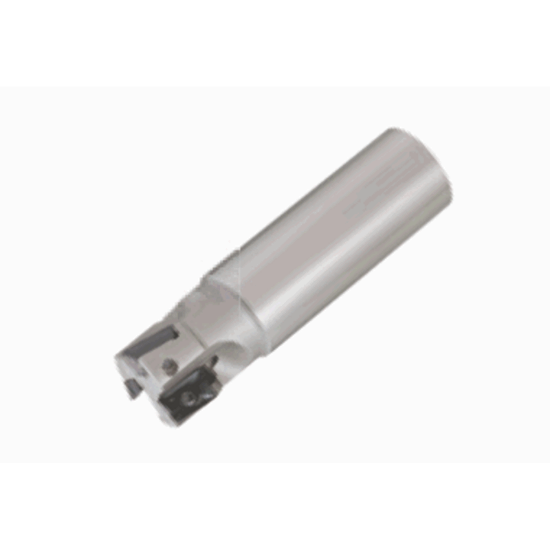

Picture of TUNGALOY EPO18R200U0125W05 Milling Cutter 90.0° 2.000 Cutter Diameter Weldon 1.2500 4.500 OAL 4 Flute

TUNGALOY EPO18R200U0125W05 Milling Cutter 90.0° 2.000 Cutter Diameter Weldon 1.2500 4.500 OAL 4 Flute

ANSI: EPO18R200U0125W05

ISO: EPO18R200U0125W05

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN3017396
Delivery date: 3-5 days
$588.15
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Package Size 1
Application Side Milling, Pocket Milling, Ramp Milling, Slot Milling, Face Milling
Insert/Tool Tool
Made In USA No
Shipping State Illinois
Insert Type Positive
Dimensional Specifications
Flutes/Inserts 4
Depth Of Cut Max 0.6570
Machine Side Connection Type Weldon
Tool Material Steel
Cut Dia Min 2.0000 50.80MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 4.5000 114.30MM
Insert Size Ic 18
Machine Side Connection Size 1.2500 31.75MM
Cutter Dia 2.0000 50.80MM
Cut Dia Max 2.0000 50.80MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AO
Hand R/L Right
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7006441
