  • TUNGALOY EPO18R100U0100W02 Milling Cutter 90.0° 1.000 Cutter Diameter Weldon 1.0000 4.000 OAL 2 Flute

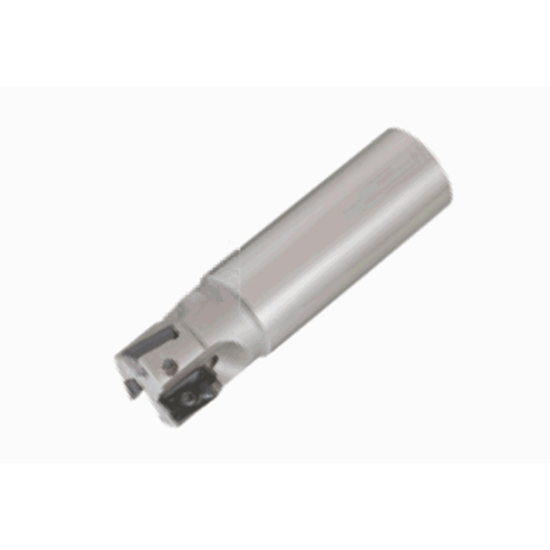

Picture of TUNGALOY EPO18R100U0100W02 Milling Cutter 90.0° 1.000 Cutter Diameter Weldon 1.0000 4.000 OAL 2 Flute

TUNGALOY EPO18R100U0100W02 Milling Cutter 90.0° 1.000 Cutter Diameter Weldon 1.0000 4.000 OAL 2 Flute

ANSI: EPO18R100U0100W02

ISO: EPO18R100U0100W02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN3012023
Delivery date: 3-5 days
$397.20
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Slot Milling, Pocket Milling, Face Milling, Side Milling
Insert/Tool Tool
Made In USA No
Shipping State Illinois
Insert Type Positive
Package Size 1
Insert Application Roughing, Semi Finishing
Dimensional Specifications
Cut Dia Max 1.0000 25.40MM
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Cutter Dia 1.0000 25.40MM
Insert Size Ic 18
Flutes/Inserts 2
Depth Of Cut Max 0.6570
Machine Side Connection Type Weldon
Overall Len 4.0000 101.60MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Coolant Thru Yes
Insert Style AO
Hand R/L Right
Fasteners & Connectors
Insert Screw 7006441
