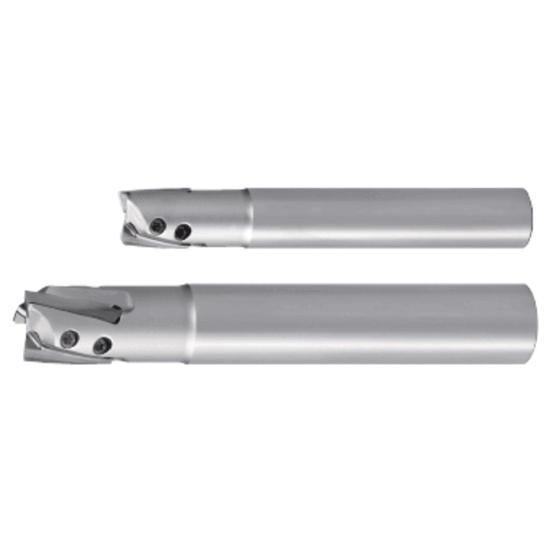

TUNGALOY EPH18R018M16.0-3 Milling Cutter 90.0° 0.709 Cutter Diameter Cylindrical Shank0.6299 5.118 OAL 3 Flute

ANSI: EPH18R018M16.0-3

ISO: EPH18R018M16.0-3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6856005
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Slot Milling, Side Milling, Pocket Milling, Face Milling
Insert Application Semi Finishing, Roughing
Package Size 1
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Dimensional Specifications
Shank/Pilot Dia 0.6299 16.00MM
Cutter Dia 0.7090 18.01MM
Depth Of Cut Max 0.6299
Machine Side Connection Type Cylindrical
Cut Dia Max 0.7090 18.01MM
Flutes/Inserts 3
Insert Size Ic 18
Tool Material Steel
Cut Dia Min 0.7090 18.01MM
Machine Side Connection Size 0.6299 16.00MM
Overall Len 5.1181 130.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Hand R/L Right
Coolant Thru No
Insert Style XH
Fasteners & Connectors
Insert Screw 6851335
