  • TUNGALOY EPH18R017M16.0-3 Milling Cutter 90.0° 0.669 Cutter Diameter Cylindrical Shank0.6299 5.118 OAL 3 Flute

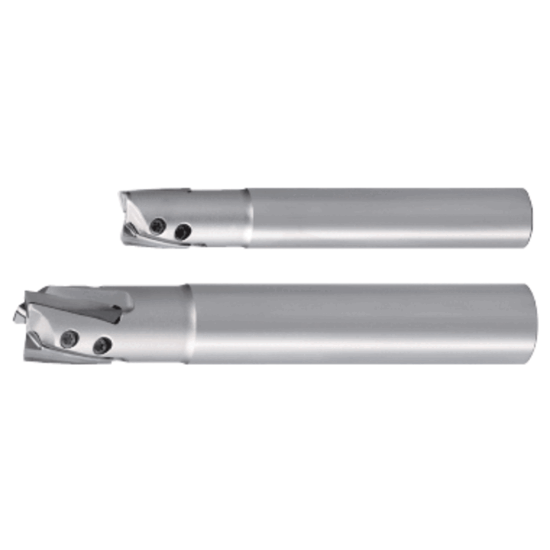

Picture of TUNGALOY EPH18R017M16.0-3 Milling Cutter 90.0° 0.669 Cutter Diameter Cylindrical Shank0.6299 5.118 OAL 3 Flute

TUNGALOY EPH18R017M16.0-3 Milling Cutter 90.0° 0.669 Cutter Diameter Cylindrical Shank0.6299 5.118 OAL 3 Flute

ANSI: EPH18R017M16.0-3

ISO: EPH18R017M16.0-3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6856004
Delivery date: 3-5 days
$375.20

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Application Pocket Milling, Ramp Milling, Slot Milling, Side Milling, Face Milling
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Insert Size Ic 18
Tool Material Steel
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Cut Dia Min 0.6690 16.99MM
Flutes/Inserts 3
Cutter Dia 0.6690 16.99MM
Cut Dia Max 0.6690 16.99MM
Depth Of Cut Max 0.6299
Machine Side Connection Type Cylindrical
Overall Len 5.1181 130.00MM
Cutting & Machining Properties
Insert Style XH
Coolant Thru No
Insert Shape/Cutter Pocket Shape Other
Hand R/L Right
Fasteners & Connectors
Insert Screw 6851335
