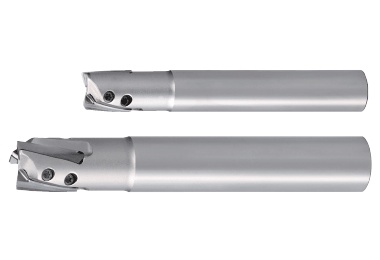

Picture of Tungaloy EPH18R017M16.0-3 Milling Cutter 90.0° 0.669 Cutter Diameter Cylindrical0.6299 5.118 OAL 3 Flute

Tungaloy EPH18R017M16.0-3 Milling Cutter 90.0° 0.669 Cutter Diameter Cylindrical0.6299 5.118 OAL 3 Flute

Part Number: TUN6856004 ISO: EPH18R017M16.0-3 ANSI:EPH18R017M16.0-3
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1017338

Description

TUNGALOY 6856004 90.0°, End Mill End Mill Cylindrical 0.6299 0.6690 16.99MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type End Mill
Coolant Thru Non Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style XH
Insert Shape/Cutter Pocket Shape Other
Hand Right Hand
Insert Screw 6851335
Dimensions & Sizing
Overall Length 5.1181 130.00MM
Shank/Pilot Dia 0.6299 16.00MM
Flutes/Inserts 3
Tool Dia 0.6690 16.99MM
Insert Size Ic 18
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 0.6690 16.99MM
Depth Of Cut Max 0.6299
Cut Dia Max 0.6690 16.99MM
Materials & Finish
Tool Material Steel
