  • TUNGALOY EPH18R016M10.0-3 Milling Cutter 90.0° 0.630 Cutter Diameter Cylindrical Shank0.3937 2.362 OAL 3 Flute

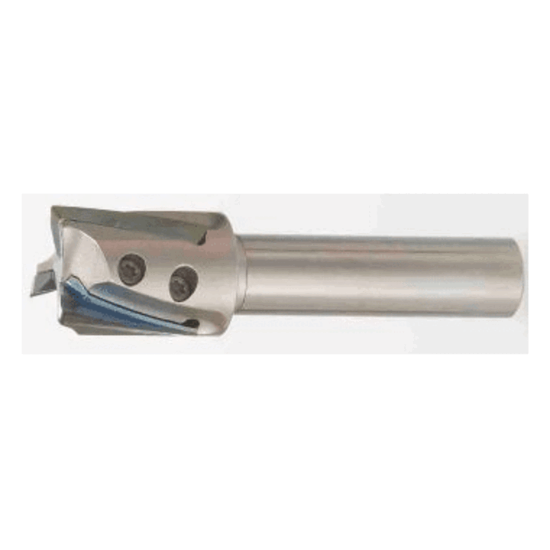

Picture of TUNGALOY EPH18R016M10.0-3 Milling Cutter 90.0° 0.630 Cutter Diameter Cylindrical Shank0.3937 2.362 OAL 3 Flute

TUNGALOY EPH18R016M10.0-3 Milling Cutter 90.0° 0.630 Cutter Diameter Cylindrical Shank0.3937 2.362 OAL 3 Flute

ANSI: EPH18R016M10.0-3

ISO: EPH18R016M10.0-3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6856016
Delivery date: 3-5 days
$330.35

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Ramp Milling, Side Milling, Pocket Milling, Slot Milling
Package Size 1
Insert/Tool Tool
Shipping State Illinois
Insert Application Semi Finishing, Roughing
Made In USA No
Dimensional Specifications
Flutes/Inserts 3
Cut Dia Min 0.6300 16.00MM
Tool Material Steel
Machine Side Connection Size 0.3937 10.00MM
Overall Len 2.3622 60.00MM
Cut Dia Max 0.6300 16.00MM
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.3937 10.00MM
Depth Of Cut Max 0.6299
Insert Size Ic 18
Cutter Dia 0.6300 16.00MM
Cutting & Machining Properties
Inter/Extern External
Coolant Thru No
Insert Shape/Cutter Pocket Shape Other
Hand R/L Right
Insert Style XH
Fasteners & Connectors
Insert Screw 6851335
