  • TUNGALOY EPH13R012M07.0-2 Milling Cutter 90.0° 0.472 Cutter Diameter Cylindrical Shank0.2756 1.968 OAL 2 Flute

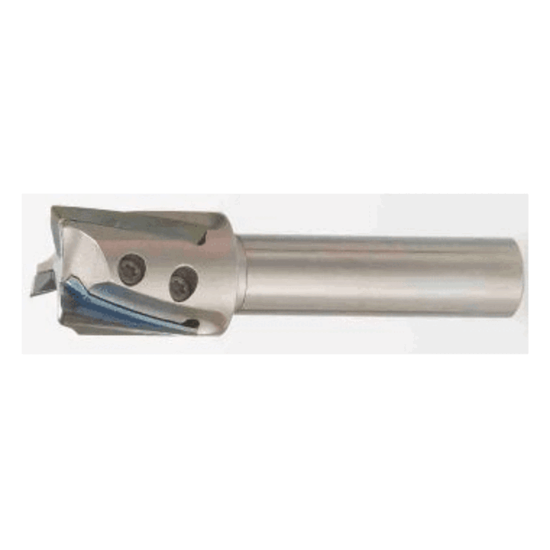

Picture of TUNGALOY EPH13R012M07.0-2 Milling Cutter 90.0° 0.472 Cutter Diameter Cylindrical Shank0.2756 1.968 OAL 2 Flute

TUNGALOY EPH13R012M07.0-2 Milling Cutter 90.0° 0.472 Cutter Diameter Cylindrical Shank0.2756 1.968 OAL 2 Flute

ANSI: EPH13R012M07.0-2

ISO: EPH13R012M07.0-2

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6856201
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Pocket Milling, Face Milling, Slot Milling, Ramp Milling, Side Milling
Insert Application Semi Finishing, Roughing
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Tool Material Steel
Shank/Pilot Dia 0.2756 7.00MM
Depth Of Cut Max 0.6000
Overall Len 1.9685 50.00MM
Insert Size Ic 13
Machine Side Connection Size 0.2756 7.00MM
Flutes/Inserts 2
Machine Side Connection Type Cylindrical
Cut Dia Min 0.4720 11.99MM
Cut Dia Max 0.4720 11.99MM
Cutter Dia 0.4720 11.99MM
Cutting & Machining Properties
Hand R/L Right
Coolant Thru No
Insert Style XH
Insert Shape/Cutter Pocket Shape Other
Fasteners & Connectors
Insert Screw 6851334
Only registered users can write reviews
